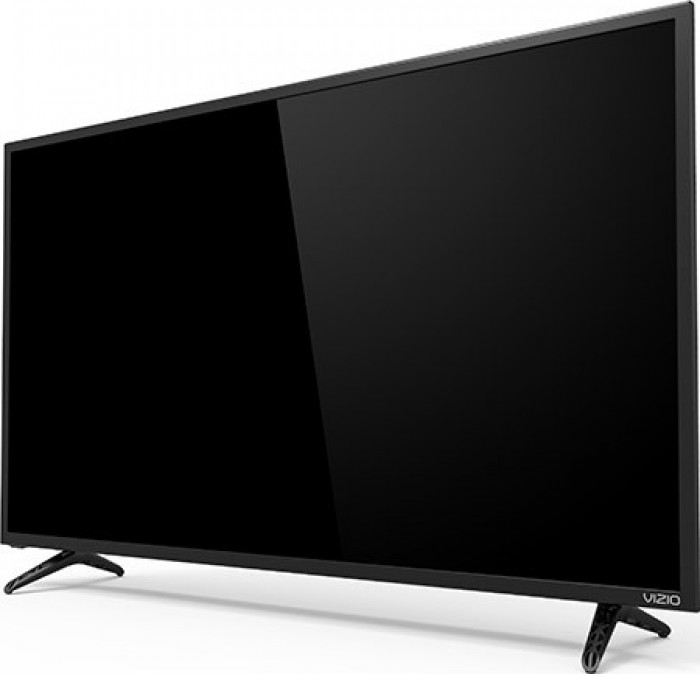

2016 48" Vizio E48u-D0 Specifications

Brand	Vizio
Type	TV
Size	48" (inches)
Panel	VA
Refresh Rate	60 Hz
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160

Check on Amazon

Compare

General Info
Type	TV
Year	2016
Brand	Vizio
Model Series	E
Model Number	E48u-D0
Size	48" (inches)
Panel	VA
Operating System	SmartCast
Display
Screen Size Class	48" (inches)
Diagonal Size	47.6 in 120.9 cm 1209 mm 3.97 ft
Screen Width	41.49 in 105.4 cm 1053.73 mm 3.46 ft
Screen Height	23.34 in 59.3 cm 592.726 mm 1.94 ft
Display Type	VA
Display Bit Depth	8 bits
Max Number of Colors	16777216
Bits	24
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160
Screen Pixel Pitch	0.274 mm
Screen Pixel Density	93 ppi
Screen-to-Body Ratio	91 %
Backlight Source	Direct LED (Full-Array Local Dimming)
DCI P3	85%
Rec.2020	58
Screen Brightness	300 cd/m²
Static Screen Contrast	3500 : 1
Dynamic Screen Contrast	50000000 : 1
Screen Horizontal Viewing Angle	178 °
Screen Vertical Viewing Angle	178 °
Screen Input Lag	30 ms
Display Average Response Time	37 ms
3D	No
Size, weight, color
Case Depth	2.91 in 7.4 cm 73.9 mm 0.24 ft
Case Weight	11.6 kg 26 lbs
Case Width with Stand	42.83 in 108.8 cm 1087.9 mm 3.57 ft
Case Height with Stand	27.22 in 69.1 cm 691.4 mm 2.27 ft
Case Depth with Stand	10.59 in 26.9 cm 269 mm 0.88 ft
Case Weight with Stand	12 kg 26 lbs
Case Color	Black
Hardware
System on Chip or SoC	V8
CPU Cores	4
GPU Cores	4
Built-in Camera	No
Network	LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Bluetooth DLNA
Connectivity	3 x HDMI 1.4 1 x HDMI 2.0 (ARC; CEC) 1 x RCA Audio Out (L/R) 1 x S/PDIF 1 x AV Component In (YPbPr + L/R) 2 x USB 2.0 (max 0.5 A) 1 x Ethernet RJ45
Audio
Audio Speakers	2 x 15W
Features
OS	SmartCast
Cool Features	Light sensor Pure Cinema Engine VM50 Ultra HD Engine Spatial Scaling Engine Active Pixel Tuning HDCP (High-bandwidth Digital Content Protection) 2.2
Ergonomics
Case Width	42.83 in 108.8 cm 1087.9 mm 3.57 ft
Case Height	24.84 in 63.1 cm 630.9 mm 2.07 ft
Vesa Mount Support	Yes
VESA Interface Standard Size	200 x 200
Removable VESA Stand	Yes
Height Adjustment	No
Landscape or Portrait Pivot Support	No
Left or Right Swivel Support	No
Forward and Backward Tilt Support	No
Frequency and Interpolation
Vertical Digital Frequency	60 Hz
Screen Interpolation Technology	Clear Action
Screen Interpolation Value	240
Screen Interpolation Measurement Unit	CA
Power
110V	100 V - 120 V
AC Frequency	50 Hz - 60 Hz
Power Consumption in Sleep Mode	0.5 W
Average Power Consumption	65 W
Power Consumption in Eco Mode	35 W
Maximum Power Consumption	120 W
Accessories
Extras	Remote control - XRT132
Certificates and Standards
Licenses	ENERGY STAR 6.0 FCC Class B UL/cUL
