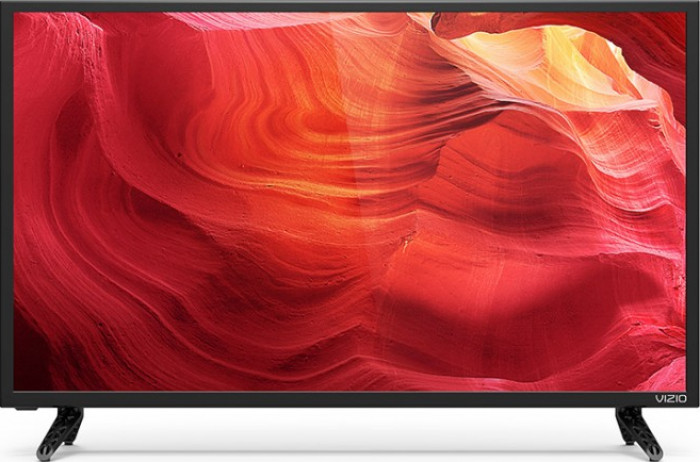

2016 40" Vizio E40-D0 Specifications

Brand Vizio
Type TV
Size 40" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type TV
Year 2016
Brand Vizio
Model Series E
Model Number E40-D0
Size 40" (inches)
Panel VA
Operating System SmartCast
Display
Screen Size Class 40" (inches)
Diagonal Size 40 in
101.6 cm
1016 mm
3.33 ft
Screen Width 34.87 in
88.6 cm
885.6 mm
2.91 ft
Screen Height 19.61 in
49.8 cm
498.15 mm
1.63 ft
Display Type VA
Display Bit Depth 8 bits
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.461 mm
Screen Pixel Density 55 ppi
Screen-to-Body Ratio 89.56 %
Backlight Source Direct LED
Dynamic Screen Contrast 200000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
3D No
Size, weight, color
Case Depth 2.91 in
7.4 cm
73.9 mm
0.24 ft
Case Weight 7.4 kg
16 lbs
Case Width with Stand 36.2 in
92 cm
919.5 mm
3.02 ft
Case Height with Stand 23.24 in
59 cm
590.3 mm
1.94 ft
Case Depth with Stand 8.23 in
20.9 cm
209 mm
0.69 ft
Case Weight with Stand 7.6 kg
17 lbs
Case Color Black
Hardware
System on Chip or SoC V6
CPU Cores 2
GPU Cores 4
TV Tuner Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM
Built-in Camera No
Network LAN
Wi-Fi
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
Bluetooth
Connectivity 2 x HDMI 1.4 (ARC; CEC)
1 x Satellite In (Main; F-type female)
1 x AV Component In (YPbPr + L/R)
1 x S/PDIF
1 x RCA Audio Out (L/R)
1 x AV Composite In (Video + L/R)
1 x USB 2.0 (max 0.5 A)
1 x Ethernet RJ45
Audio
Audio Speakers 2 x 10W
Features
OS SmartCast
Cool Features Light sensor
Ergonomics
Case Width 36.2 in
92 cm
919.5 mm
3.02 ft
Case Height 21.09 in
53.6 cm
535.7 mm
1.76 ft
Vesa Mount Support Yes
VESA Interface Standard Size 200 x 200
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Clear Action
Screen Interpolation Value 240
Screen Interpolation Measurement Unit CA
Power
110V 100 V - 120 V
AC Frequency 50 Hz - 60 Hz
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 36.5 W
Accessories
Extras Remote control - XRT133
Certificates and Standards
Licenses ENERGY STAR 6.0
FCC Class B
UL/cUL
Usage and Storage Requirements
