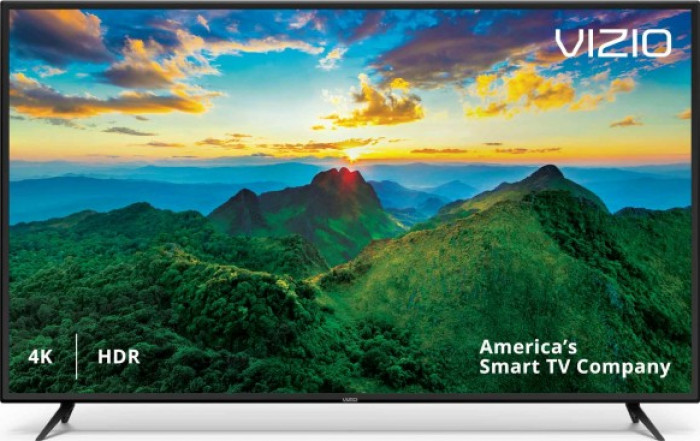

2018 70" Vizio D70-F3 Specifications

Brand Vizio
Type TV
Size 70" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2018
Brand Vizio
Model Series D
Model Number D70-F3
Size 70" (inches)
Panel VA
Operating System SmartCast
Display
Screen Size Class 70" (inches)
Diagonal Size 67.56 in
171.6 cm
1716 mm
5.63 ft
Screen Width 60.59 in
153.9 cm
1538.88 mm
5.05 ft
Screen Height 34.08 in
86.6 cm
865.62 mm
2.84 ft
Display Type VA
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.401 mm
Screen Pixel Density 63 ppi
Screen-to-Body Ratio 93.85 %
Backlight Source Direct LED
Dynamic Screen Contrast 200000 : 1
Screen Horizontal Viewing Angle 176 °
Screen Vertical Viewing Angle 176 °
HDR HDR10
HLG (Hybrid Log Gamma)
3D No
Size, weight, color
Case Depth 2.9 in
7.4 cm
73.7 mm
0.24 ft
Case Weight 25.2 kg
55 lbs
Case Width with Stand 61.8 in
157 cm
1569.7 mm
5.15 ft
Case Height with Stand 38.5 in
97.8 cm
977.9 mm
3.21 ft
Case Depth with Stand 11.1 in
28.2 cm
281.9 mm
0.92 ft
Case Weight with Stand 25.6 kg
56 lbs
Case Color Black
Hardware
System on Chip or SoC V8
CPU Cores 4
GPU Cores 4
TV Tuner Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Connectivity 3 x HDMI 2.0 (ARC; CEC)
1 x Satellite In (Main; F-type female)
1 x AV Component In (YPbPr + L/R)
1 x S/PDIF
1 x RCA Audio Out (L/R)
1 x AV Composite In (Video + L/R)
1 x USB 2.0 (max 0.5 A)
1 x Ethernet RJ45
Audio
Audio Speakers 2 x 10W
Features
OS SmartCast
Cool Features HDCP (High-bandwidth Digital Content Protection) 2.2
Light sensor
Ergonomics
Case Width 61.8 in
157 cm
1569.7 mm
5.15 ft
Case Height 35.6 in
90.4 cm
904.2 mm
2.97 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 400
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Clear Action
Screen Interpolation Value 120
Screen Interpolation Measurement Unit CA
Power
110V 100 V - 120 V
AC Frequency 50 Hz - 60 Hz
Power Consumption in Sleep Mode 0.5 W
Power Consumption in Eco Mode 98 W
Accessories
Extras Remote control - XRT136
Certificates and Standards
Licenses ENERGY STAR 7.0
FCC Class B
UL/cUL
Usage and Storage Requirements
