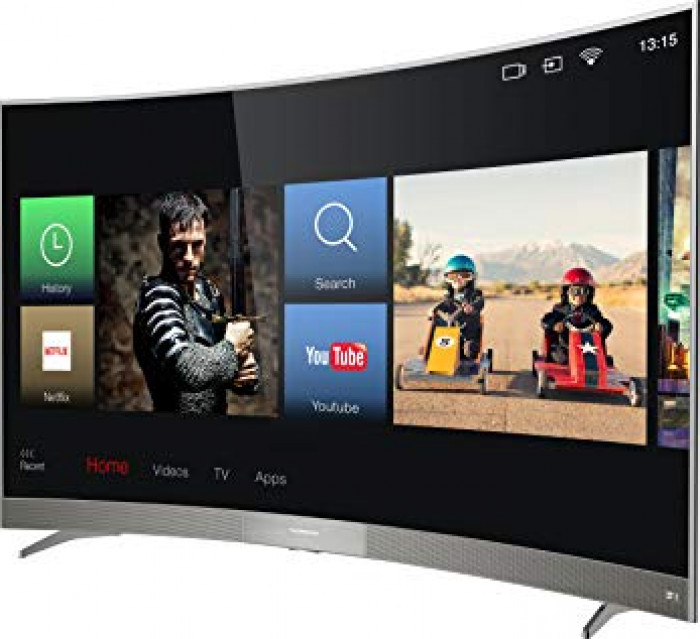

2018 65" Thomson 65UD6696 Specifications

Brand Thomson
Type TV
Size 65" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2018
Brand Thomson
Model Series D66
Model Number 65UD6696
Size 65" (inches)
Panel VA
Operating System Smart TV.3
Display
Screen Size Class 65" (inches)
Diagonal Size 64.53 in
163.9 cm
1639 mm
5.38 ft
Screen Width 56.24 in
142.8 cm
1428.48 mm
4.69 ft
Screen Height 31.63 in
80.4 cm
803.52 mm
2.64 ft
Display Curvature 4000
Display Type VA
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.372 mm
Screen Pixel Density 68 ppi
Screen-to-Body Ratio 92.3 %
Backlight Source Edge LED
Screen Brightness 360 cd/m²
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR HDR10
HLG (Hybrid Log Gamma)
3D No
Size, weight, color
Case Depth 5.12 in
13 cm
130 mm
0.43 ft
Case Width with Stand 56.93 in
144.6 cm
1446 mm
4.74 ft
Case Height with Stand 36.22 in
92 cm
920 mm
3.02 ft
Case Depth with Stand 10.47 in
26.6 cm
266 mm
0.87 ft
Case Weight with Stand 21 kg
46 lbs
Case Color Black, Gray
Hardware
CPU Cores 2
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T2
DVB-S2
DVB-C
DVB-T
DVB-S
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
Wi-Fi Direct
DLNA
Connectivity 3 x HDMI 2.0 (ARC; CEC)
1 x Satellite In (Main; F-type female)
1 x AV Component In (YPbPr + L/R)
1 x 3.5 mm Audio Out
1 x S/PDIF
1 x AV Composite In (Video + L/R)
2 x USB 2.0
1 x Antenna (RF) (female)
1 x Ethernet RJ45
1 x CI+
Audio
Audio Speakers 2 x 10W
Features
OS Smart TV.3
Cool Features Micro Dimming
Pure Image Ultra HD
UHD Upscaling
UHD Color Extender
HDCP (High-bandwidth Digital Content Protection) 2.2
Mega Contrast
Ergonomics
Case Width 56.93 in
144.6 cm
1446 mm
4.74 ft
Case Height 33.86 in
86 cm
860 mm
2.82 ft
Vesa Mount Support Yes
VESA Interface Standard Size 200 x 300
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Picture Performance Index
Screen Interpolation Value 1500
Screen Interpolation Measurement Unit PPI
Power
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.29 W
Average Power Consumption 118 W
Maximum Power Consumption 150 W
Energy Class A+
Accessories
Extras Remote control - RC802N2
Certificates and Standards
Licenses RoHS
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
Internal Storage Temperature -15 °C - 45 °C
5 °F - 113 °F
Internal Storage Humidity 10 % - 90 %
