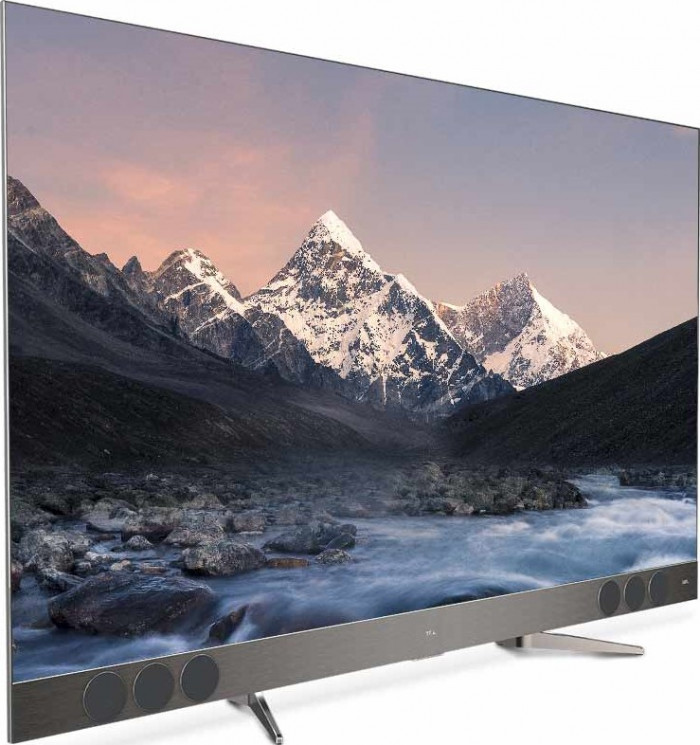

2017 65" TCL Xess X2 U65X9026 Specifications

Brand TCL
Type TV
Size 65" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2017
Brand TCL
Model Series X2
Model Number Xess X2 U65X9026
Alias U65X9026
Size 65" (inches)
Panel VA
Operating System Android 6.0.1 Marshmallow
Android 7.0 Nougat
Display
Screen Size Class 65" (inches)
Diagonal Size 64.53 in
163.9 cm
1639 mm
5.38 ft
Screen Width 56.24 in
142.8 cm
1428.48 mm
4.69 ft
Screen Height 31.63 in
80.4 cm
803.52 mm
2.64 ft
Display Type VA
Display Bit Depth 10 bits
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.372 mm
Screen Pixel Density 68 ppi
Screen-to-Body Ratio 93.24 %
Backlight Source Edge LED
DCI P3 103%
Rec.2020 75
Screen Brightness 350 cd/m²
Max Screen Brightness 600 cd/m²
Static Screen Contrast 3000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Screen Input Lag 30 ms
HDR HDR Pro
HDR10
HLG (Hybrid Log Gamma)
3D No
Size, weight, color
Case Depth 2.28 in
5.8 cm
58 mm
0.19 ft
Case Weight 22.6 kg
50 lbs
Case Width with Stand 57.56 in
146.2 cm
1462 mm
4.8 ft
Case Height with Stand 34.65 in
88 cm
880 mm
2.89 ft
Case Depth with Stand 12.2 in
31 cm
310 mm
1.02 ft
Case Weight with Stand 23 kg
51 lbs
Case Color Gray
Hardware
System on Chip or SoC Mediatek MT5891
CPU ARM Cortex-A53
CPU Cores 4
CPU Frequency 1100
GPU ARM Mali-T860 MP2
GPU Cores 2
GPU Frequency 700
RAM Memory Size 2
Internal Storage 16
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S
DVB-S2
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 1 x Ethernet RJ45
3 x HDMI 2.0 (ARC; CEC; MHL)
1 x AV Composite In 3.5 mm jack
1 x 3.5 mm Audio Out
1 x Optical Audio Out
1 x Satellite In (Main; F-type female)
1 x USB 2.0
1 x Antenna (RF) (female)
1 x USB 3.0
1 x CI+ 1.3
Audio
Audio Speakers 2 x 20W
Features
OS Android 6.0.1 Marshmallow
Android 7.0 Nougat
Cool Features Micro Dimming
Picture Noise Reduction
UHD Premium Color Enhancer
Wide Color Gamut
UHD Upscaling
Quantum Dot Display
HDCP (High-bandwidth Digital Content Protection) 2.2
Mega Dynamic Contrast
Ergonomics
Case Width 57.56 in
146.2 cm
1462 mm
4.8 ft
Case Height 33.15 in
84.2 cm
842 mm
2.76 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 400
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Picture Performance Index
Screen Interpolation Value 2100
Screen Interpolation Measurement Unit PPI
Power
110V 100 V - 120 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.29 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 120 W
Maximum Power Consumption 170 W
Energy Class A+
Accessories
Extras Remote control - RC64
Certificates and Standards
Licenses ENERGY STAR
RoHS
UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
Internal Storage Temperature -15 °C - 45 °C
5 °F - 113 °F
Internal Storage Humidity 10 % - 90 %
