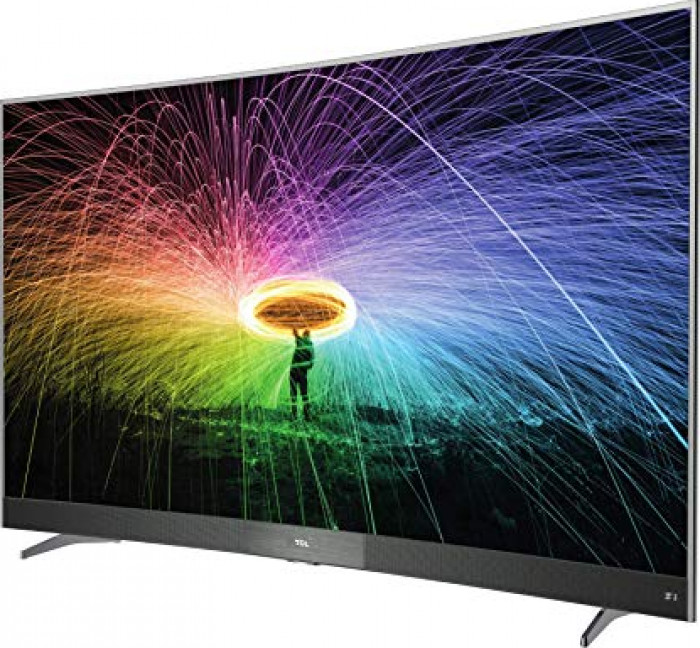

2018 49" TCL U49P6196 Specifications

Brand	TCL
Type	TV
Size	49" (inches)
Refresh Rate	60 Hz
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160

Check on Amazon

Compare

General Info
Type	TV
Year	2018
Brand	TCL
Model Series	P61
Model Number	U49P6196
Size	49" (inches)
Operating System	Smart TV.3
Display
Screen Size Class	49" (inches)
Diagonal Size	48.46 in 123.1 cm 1231 mm 4.04 ft
Screen Width	42.24 in 107.3 cm 1072.91 mm 3.52 ft
Screen Height	23.76 in 60.4 cm 603.512 mm 1.98 ft
Display Curvature	4000
Display Bit Depth	10 bits (8 bits + FRC)
Frame Rate Control	Yes
Max Number of Colors	1073741824
Bits	30
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160
Screen Pixel Pitch	0.279 mm
Screen Pixel Density	91 ppi
Screen-to-Body Ratio	87.84 %
Backlight Source	Edge LED
Screen Brightness	290 cd/m²
Screen Horizontal Viewing Angle	178 °
Screen Vertical Viewing Angle	178 °
HDR	HDR10 HLG (Hybrid Log Gamma)
3D	No
Size, weight, color
Case Depth	4.33 in 11 cm 110 mm 0.36 ft
Case Weight	11.8 kg 26 lbs
Case Width with Stand	43.19 in 109.7 cm 1097 mm 3.6 ft
Case Height with Stand	27.76 in 70.5 cm 705 mm 2.31 ft
Case Depth with Stand	9.41 in 23.9 cm 239 mm 0.78 ft
Case Weight with Stand	12 kg 26 lbs
Case Color	Gray
Hardware
CPU Cores	2
Internal Storage	16
TV Tuner	Analog (NTSC/PAL/SECAM) DVB-T2 DVB-S2 DVB-C DVB-T DVB-S
Built-in Camera	No
Network	LAN Wi-Fi 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) Wi-Fi Direct DLNA
Connectivity	3 x HDMI 2.0 (ARC; CEC) 1 x Satellite In (Main; F-type female) 1 x S/PDIF 1 x Antenna (RF) (female) 1 x 3.5 mm Audio Out 1 x Video Component In 3.5 mm jack 2 x USB 2.0 1 x CI+ 1 x Ethernet RJ45
Audio
Audio Speakers	2 x 8W
Features
OS	Smart TV.3
Cool Features	Micro Dimming Picture Noise Reduction Smart HDR UHD Upscaling UHD Color Extender Pure Image Ultra HD HDCP (High-bandwidth Digital Content Protection) 2.2 Mega Dynamic Contrast
Ergonomics
Case Width	43.19 in 109.7 cm 1097 mm 3.6 ft
Case Height	26.46 in 67.2 cm 672 mm 2.2 ft
Vesa Mount Support	Yes
VESA Interface Standard Size	200 x 200
Removable VESA Stand	Yes
Height Adjustment	No
Landscape or Portrait Pivot Support	No
Left or Right Swivel Support	No
Forward and Backward Tilt Support	No
Frequency and Interpolation
Vertical Digital Frequency	60 Hz
Screen Interpolation Technology	Picture Performance Index
Screen Interpolation Value	1500
Screen Interpolation Measurement Unit	PPI
Power
220V	220 V - 240 V
AC Frequency	50 Hz - 60 Hz
Power Consumption When Device is Off	0.29 W
Average Power Consumption	89 W
Maximum Power Consumption	110 W
Energy Class	A
Accessories
Extras	Remote control - RC802N2
Certificates and Standards
Licenses	RoHS
Usage and Storage Requirements
Safe Operating Temperature Level	5 °C - 35 °C 41 °F - 95 °F
Safe Operating Humidity Level	20 % - 80 %
Internal Storage Temperature	-15 °C - 45 °C 5 °F - 113 °F
Internal Storage Humidity	10 % - 90 %
