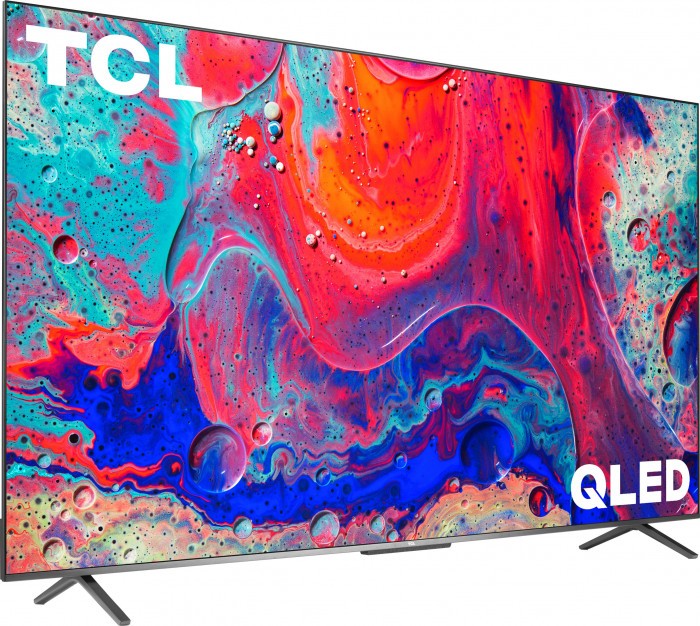

| Brand | TCL |
| Type | TV |
| Size | 75" (inches) |
| Panel | VA |
| Refresh Rate | 60 Hz |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| General Info | |
|---|---|
| Type | TV |
| Year | 2021 |
| Brand | TCL |
| Model Series | S546 |
| Model Number | 75S546 |
| Size | 75" (inches) |
| Panel | VA |
| Operating System | Google TV |
| Display | |
| Screen Size Class | 75" (inches) |
| Diagonal Size | 74.53 in 189.3 cm 1893 mm 6.21 ft |
| Screen Width | 64.97 in 165 cm 1650.24 mm 5.41 ft |
| Screen Height | 36.55 in 92.8 cm 928.26 mm 3.05 ft |
| Display Type | VA |
| Display Bit Depth | 10 bits (8 bits + FRC) |
| Frame Rate Control | Yes |
| Max Number of Colors | 1073741824 |
| Bits | 30 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| Screen Pixel Pitch | 0.43 mm |
| Screen Pixel Density | 59 ppi |
| Screen-to-Body Ratio | 95.21 % |
| Backlight Source | Direct LED (Full-Array Local Dimming) |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| Display Coating | Glossy |
| HDR | HDR10 HLG (Hybrid Log Gamma) Dolby Vision HDR10+ |
| 3D | No |
| Size, weight, color | |
| Case Depth | 3.9 in 9.9 cm 99 mm 0.32 ft |
| Case Weight | 30.62 kg 67 lbs |
| Case Width with Stand | 65.8 in 167.1 cm 1671.32 mm 5.48 ft |
| Case Height with Stand | 40.4 in 102.6 cm 1026.16 mm 3.37 ft |
| Case Depth with Stand | 14.3 in 36.3 cm 363.22 mm 1.19 ft |
| Case Weight with Stand | 31.3 kg 69 lbs |
| Case Color | Black |
| Hardware | |
| CPU Cores | 4 |
| GPU Cores | 2 |
| TV Tuner | Analog (NTSC/PAL/SECAM) ATSC Clear QAM |
| Built-in Camera | No |
| Network | LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Wi-Fi Direct |
| Connectivity | 3 x HDMI 2.0 1 x Cable/Antenna In (F-type female) 1 x S/PDIF 1 x 3.5 mm Audio Out 1 x AV Composite In 3.5 mm jack 1 x USB 2.0 1 x Ethernet RJ45 |
| Audio | |
| Audio Speakers | 2 x 15W |
| Features | |
| OS | Google TV |
| Cool Features | YouTube Apple TV+ Smart Contrast Smart 4K Upscaling Smart HDR Auto Game Mode HDR Pro Pack Chromecast built-in Easy Voice Control Quantum Dot Color Netflix V-Chip Disney+ Contrast Control Zones technology Alexa Prime Video FullView Edge-to-Edge Glass Design Apple AirPlay Google Assistant |
| Ergonomics | |
| Case Width | 65.8 in 167.1 cm 1671.32 mm 5.48 ft |
| Case Height | 37.9 in 96.3 cm 962.66 mm 3.16 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 400 x 300 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | No |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 48 Hz - 60 Hz |
| Screen Interpolation Technology | Natural Motion |
| Screen Interpolation Value | 240 |
| Screen Interpolation Measurement Unit | NM |
| Power | |
| 110V | 100 V - 120 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption in Sleep Mode | 0.5 W |
| Accessories | |
| Extras | Voice-Enabled Remote Control - RC902N |
| Certificates and Standards | |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % |
| Internal Storage Temperature | -15 °C - 45 °C 5 °F - 113 °F |
| Internal Storage Humidity | 10 % - 90 % |
