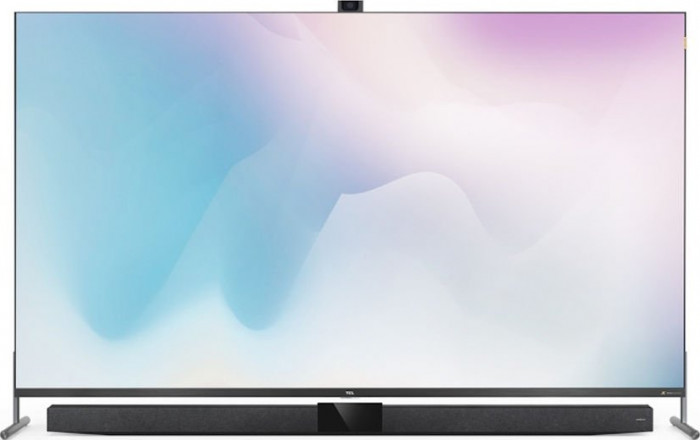

2019 55" TCL 55EC780 Specifications

Brand TCL
Type TV
Size 55" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2019
Brand TCL
Model Series EC78
Model Number 55EC780
Alias 55EC780X1
Size 55" (inches)
Panel VA
Operating System Android 9.0 Pie
Display
Screen Size Class 55" (inches)
Diagonal Size 54.65 in
138.8 cm
1388 mm
4.55 ft
Screen Width 47.62 in
121 cm
1209.6 mm
3.97 ft
Screen Height 26.79 in
68 cm
680.4 mm
2.23 ft
Display Type VA
Display Bit Depth 10 bits
Frame Rate Control No
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.315 mm
Screen Pixel Density 80 ppi
Screen-to-Body Ratio 90.77 %
Backlight Source Edge LED
Screen Brightness 400 cd/m²
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR HDR10+
HDR Pro
Dolby Vision
3D No
Size, weight, color
Case Depth 3.07 in
7.8 cm
78 mm
0.26 ft
Case Weight 12.2 kg
27 lbs
Case Width with Stand 48.9 in
124.2 cm
1242 mm
4.07 ft
Case Height with Stand 30.75 in
78.1 cm
781 mm
2.56 ft
Case Depth with Stand 8.66 in
22 cm
220 mm
0.72 ft
Case Weight with Stand 12.4 kg
27 lbs
Case Color Black
Hardware
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S
DVB-S2
Built-in Camera No
Network Wi-Fi
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
Wi-Fi Direct
DLNA 1.5
Connectivity 2 x HDMI 2.0 (b; HDCP 2.2)
1 x HDMI 2.0 (b; HDCP 2.2; MHL; ARC)
1 x RCA Video In
1 x 3.5 mm Audio Out
1 x Optical Audio Out
1 x Satellite In
2 x USB 2.0
1 x Antenna (RF)
1 x Ethernet RJ45
1 x CI+ 1.4
Audio
Audio Speakers 4 x 13W
Features
OS Android 9.0 Pie
Cool Features HDCP (High-bandwidth Digital Content Protection) 2.2
Picture noise reduction
Wide Color Gamut
Game mode / Film Mode / Sports mode
Google Assistant
Extra Features Remote control - RC602S6+RC802N6
Ergonomics
Case Width 48.9 in
124.2 cm
1242 mm
4.07 ft
Case Height 28.74 in
73 cm
730 mm
2.4 ft
Vesa Mount Support Yes
VESA Interface Standard Size 200 x 200
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Picture Performance Index
Screen Interpolation Value 2000
Screen Interpolation Measurement Unit PPI
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption in Sleep Mode 0.29 W
Average Power Consumption 87 W
Maximum Power Consumption 140 W
Energy Class A+
Accessories
Certificates and Standards
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 25 %
Internal Storage Temperature -15 °C - 45 °C
5 °F - 113 °F
Internal Storage Humidity 10 % - 90 %
