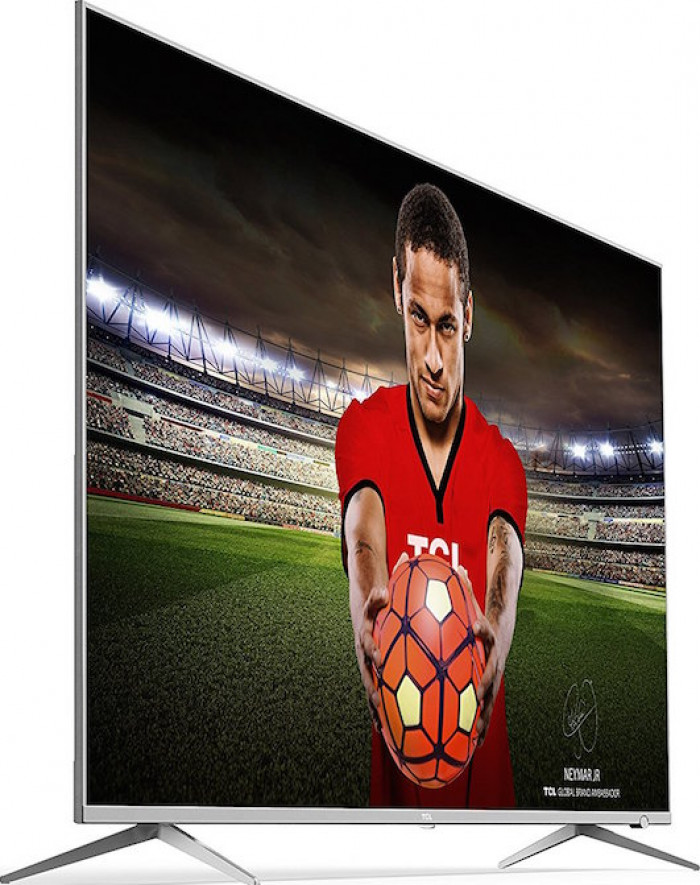

2018 55" TCL 55DP648 Specifications

Brand TCL
Type TV
Size 55" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2018
Brand TCL
Model Series P648
Model Number 55DP648
Size 55" (inches)
Panel VA
Operating System Smart TV.3
Display
Screen Size Class 55" (inches)
Diagonal Size 54.65 in
138.8 cm
1388 mm
4.55 ft
Screen Width 47.62 in
121 cm
1209.6 mm
3.97 ft
Screen Height 26.79 in
68 cm
680.4 mm
2.23 ft
Display Type VA
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.315 mm
Screen Pixel Density 80 ppi
Screen-to-Body Ratio 93.81 %
Backlight Source Edge LED
Screen Brightness 280 cd/m²
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR HDR10
HLG (Hybrid Log Gamma)
3D No
Size, weight, color
Case Depth 2.95 in
7.5 cm
75 mm
0.25 ft
Case Weight 14.8 kg
33 lbs
Case Width with Stand 48.31 in
122.7 cm
1227 mm
4.03 ft
Case Height with Stand 30.12 in
76.5 cm
765 mm
2.51 ft
Case Depth with Stand 10.55 in
26.8 cm
268 mm
0.88 ft
Case Weight with Stand 15 kg
33 lbs
Case Color Silver
Hardware
CPU Cores 2
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T2
DVB-S2
DVB-C
DVB-T
DVB-S
Built-in Camera No
Network LAN
Wi-Fi
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
Wi-Fi Direct
DLNA
Connectivity 3 x HDMI 2.0 (ARC; CEC)
1 x Satellite In (Main; F-type female)
1 x S/PDIF
1 x Antenna (RF) (female)
1 x 3.5 mm Audio Out
1 x Video Component In 3.5 mm jack
2 x USB 2.0
1 x CI+
1 x Ethernet RJ45
Audio
Audio Speakers 2 x 8W
Features
OS Smart TV.3
Cool Features Micro Dimming
Picture Noise Reduction
UHD Color Extender
UHD Upscaling
Pure Image Ultra HD
HDCP (High-bandwidth Digital Content Protection) 2.2
Mega Dynamic Contrast
Ergonomics
Case Width 48.31 in
122.7 cm
1227 mm
4.03 ft
Case Height 28.15 in
71.5 cm
715 mm
2.35 ft
Vesa Mount Support Yes
VESA Interface Standard Size 200 x 200
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Picture Performance Index
Screen Interpolation Value 1500
Screen Interpolation Measurement Unit PPI
Power
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.29 W
Power Consumption in Sleep Mode 0.74 W
Average Power Consumption 87 W
Maximum Power Consumption 140 W
Energy Class A+
Accessories
Extras Remote control - RC802N3
Certificates and Standards
Licenses RoHS
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
Internal Storage Temperature -15 °C - 45 °C
5 °F - 113 °F
Internal Storage Humidity 10 % - 90 %
