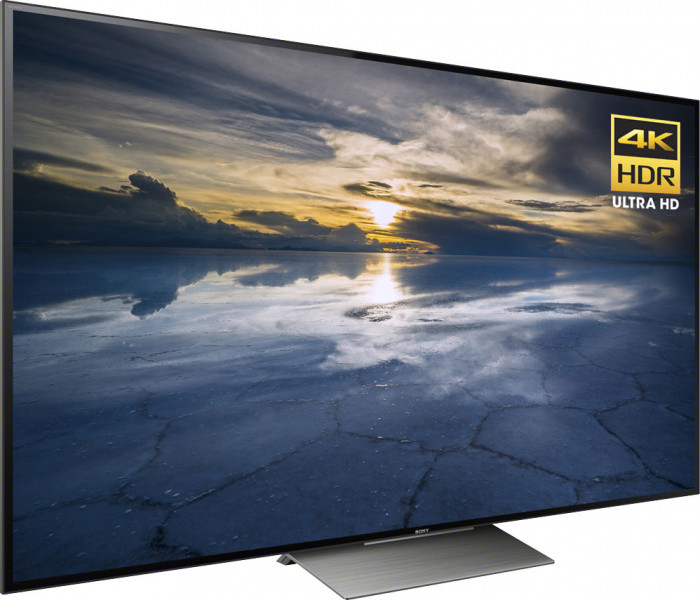

2016 75" Sony XBR-75X940D Specifications

Brand Sony
Type TV
Size 75" (inches)
Panel VA
Refresh Rate 120 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2016
Brand Sony
Model Series X940D
Model Number XBR-75X940D
Size 75" (inches)
Panel VA
Operating System Android 5.1.1 Lollipop
Android 6.0 Marshmallow
Android 7.0 Nougat
Display
Screen Size Class 75" (inches)
Diagonal Size 74.53 in
189.3 cm
1893 mm
6.21 ft
Screen Width 64.97 in
165 cm
1650.24 mm
5.41 ft
Screen Height 36.55 in
92.8 cm
928.26 mm
3.05 ft
Display Type VA
Display Bit Depth 10 bits
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.43 mm
Screen Pixel Density 59 ppi
Screen-to-Body Ratio 95.47 %
Backlight Source Direct LED (Full-Array Local Dimming)
DCI P3 96%
Screen Brightness 400 cd/m²
Max Screen Brightness 1000 cd/m²
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR HDR
HLG (Hybrid Log Gamma)
3D Yes
Size, weight, color
Case Depth 2.01 in
5.1 cm
51 mm
0.17 ft
Case Weight 36.6 kg
81 lbs
Case Width with Stand 65.8 in
167.1 cm
1671.3 mm
5.48 ft
Case Height with Stand 40 in
101.6 cm
1016 mm
3.33 ft
Case Depth with Stand 12.9 in
32.8 cm
327.7 mm
1.08 ft
Case Weight with Stand 41 kg
90 lbs
Case Color Black
Hardware
System on Chip or SoC MediaTek MT5890
CPU ARM Cortex-A17
CPU Cores 2
CPU Frequency 1000
GPU ARM Mali-T624 MP3
GPU Cores 3
Internal Storage 16
TV Tuner Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 1 x Ethernet RJ45
4 x HDMI 2.0 (ARC; CEC; MHL)
1 x IR Out
1 x AV Composite In (Video + L/R)
1 x Optical Audio Out
1 x AV Component In (YPbPr + L/R)
1 x Satellite In (Main; F-type female)
2 x USB 2.0 (max 0.5 A)
1 x 3.5 mm Audio Out
1 x USB 3.0 (max 0.9 A)
1 x RS232 (C)
Audio
Audio Speakers 2 x 7.5W
Features
OS Android 5.1.1 Lollipop
Android 6.0 Marshmallow
Android 7.0 Nougat
Cool Features X-Reality Pro
BRAVIA Sync (HDMI-CEC)
S-Master Digital Amplifier
S-Force Front Surround sound
Triluminos Display
Cinema Drive
Image Processor - X1
ClearAudio+
DSEE (Digital Sound Enhancement Engine)
PVR
Light sensor
Voice command
Clear Phase Speaker
CineMotion
Advanced Contrast Enhancer
Local Dimming
Dynamic Backlight Control
Backlight OFF mode
HDCP (High-bandwidth Digital Content Protection) 2.2
Ergonomics
Case Width 65.8 in
167.1 cm
1671.3 mm
5.48 ft
Case Height 37.8 in
96 cm
960.1 mm
3.15 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 300
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 120 Hz
Screen Interpolation Technology Motionflow XR
Screen Interpolation Value 960
Screen Interpolation Measurement Unit XR
Power
110V 100 V - 120 V
AC Frequency 50 Hz - 60 Hz
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 160 W
Power Consumption in Eco Mode 70 W
Maximum Power Consumption 199 W
Accessories
Extras IR extender cable
Remote control - RMF-TX200U
Certificates and Standards
Licenses UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
