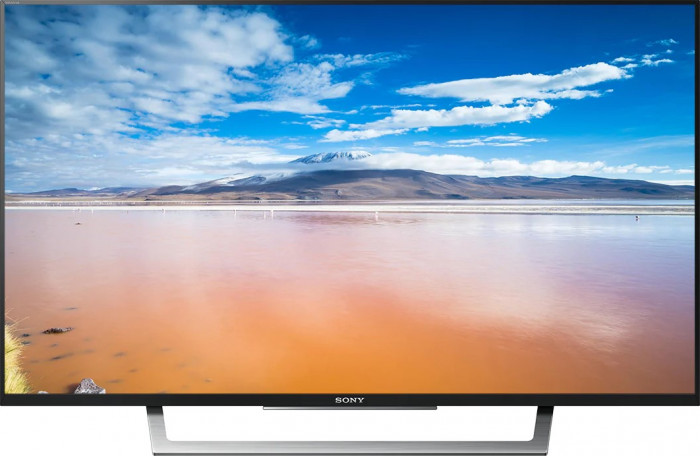

2016 49" Sony KDL-49WD754 Specifications

Brand Sony
Type TV
Size 49" (inches)
Panel PLS
Refresh Rate 60 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type TV
Year 2016
Brand Sony
Model Series WD75
Model Number KDL-49WD754
Size 49" (inches)
Panel PLS
Operating System Smart TV
Display
Screen Size Class 49" (inches)
Diagonal Size 48.46 in
123.1 cm
1231 mm
4.04 ft
Screen Width 42.24 in
107.3 cm
1072.91 mm
3.52 ft
Screen Height 23.76 in
60.4 cm
603.512 mm
1.98 ft
Display Type PLS
Display Bit Depth 8 bits
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.559 mm
Screen Pixel Density 46 ppi
Screen-to-Body Ratio 92.57 %
Backlight Source Edge LED
Screen Brightness 400 cd/m²
Static Screen Contrast 1300 : 1
Dynamic Screen Contrast 5000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Display Minimum Response Time 5 ms
3D No
Size, weight, color
Case Depth 2.2 in
5.6 cm
56 mm
0.18 ft
Case Weight 11.3 kg
25 lbs
Case Width with Stand 43.03 in
109.3 cm
1093 mm
3.59 ft
Case Height with Stand 27.17 in
69 cm
690 mm
2.26 ft
Case Depth with Stand 9.02 in
22.9 cm
229 mm
0.75 ft
Case Weight with Stand 12 kg
26 lbs
Case Color Black
Hardware
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S2
DVB-S
Built-in Camera No
Network LAN
Wi-Fi
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
Wi-Fi Direct
DLNA
Connectivity 2 x HDMI 1.4 (ARC; CEC)
1 x Satellite In (Main; F-type female)
1 x CI+ 1.3
1 x AV Composite In (Video + L/R)
1 x Optical Audio Out
1 x AV Component In (YPbPr + L/R)
1 x SCART
2 x USB 2.0 (max 0.5 A)
1 x 3.5 mm Audio Out
1 x Ethernet RJ45
1 x Antenna (RF) (female)
Audio
Audio Speakers 2 x 10W
Features
OS Smart TV
Cool Features BRAVIA Sync (HDMI-CEC)
Cinema Drive
X-Reality Pro
Clear Phase Speaker
Light sensor
Dynamic Backlight Control
CineMotion
Advanced Contrast Enhancer
PVR
Backlight OFF mode
S-Master Digital Amplifier
Extra Features ControlSync IN/OUT port - 2.5 mm stereo jack
Ergonomics
Case Width 43.03 in
109.3 cm
1093 mm
3.59 ft
Case Height 25.2 in
64 cm
640 mm
2.1 ft
Vesa Mount Support Yes
VESA Interface Standard Size 200 x 300
Removable VESA Stand Yes
Height Adjustment No
Height Adjustment Range 95 mm
9.5 cm
3.7402 in
0.3117 ft
Landscape or Portrait Pivot Support No
Left Pivot 90 °
Right Pivot 90 °
Left or Right Swivel Support No
Left Swivel 60 °
Right Swivel 60 °
Forward and Backward Tilt Support No
Forward Tilt 4 °
Backward Tilt 15 °
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Horizontal Digital Frequency 31.5 kHz - 95 kHz
Screen Interpolation Technology Motionflow XR
Screen Interpolation Value 400
Screen Interpolation Measurement Unit XR
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Electric Power in Amperes 1.6 A
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 61 W
Power Consumption in Eco Mode 15 W
Maximum Power Consumption 96 W
Energy Class A+
Accessories
Extras Remote control - RMT-TX102D
Certificates and Standards
Licenses UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
Internal Storage Temperature -10 °C - 60 °C
14 °F - 140 °F
Internal Storage Humidity 10 % - 85 %
Max Operating Altitude 5000
Max Storage Altitude 12192
