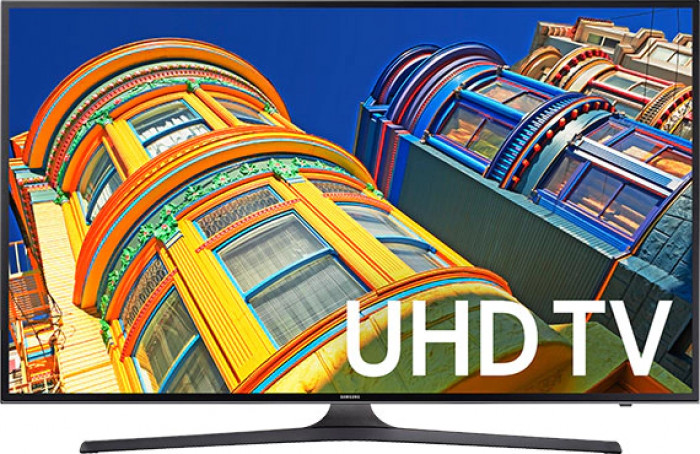

2016 50" Samsung UN50KU630D Specifications

Brand Samsung
Type TV
Size 50" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2016
Brand Samsung
Model Series KU630D
Model Number UN50KU630D
Alias UN50KU630DFXZA
Size 50" (inches)
Panel VA
Operating System Tizen 2.4
Display
Screen Size Class 50" (inches)
Diagonal Size 49.49 in
125.7 cm
1257 mm
4.12 ft
Screen Width 43.13 in
109.6 cm
1095.57 mm
3.59 ft
Screen Height 24.26 in
61.6 cm
616.258 mm
2.02 ft
Display Type VA
Display Bit Depth 8 bits
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.285 mm
Screen Pixel Density 89 ppi
Screen-to-Body Ratio 91.35 %
Backlight Source Direct LED
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR HDR Premium
3D No
Size, weight, color
Case Depth 2.5 in
6.4 cm
63.5 mm
0.21 ft
Case Weight 12.2 kg
27 lbs
Case Width with Stand 44.4 in
112.8 cm
1127.8 mm
3.7 ft
Case Height with Stand 28.5 in
72.4 cm
723.9 mm
2.38 ft
Case Depth with Stand 12.2 in
31 cm
309.9 mm
1.02 ft
Case Weight with Stand 13.2 kg
29 lbs
Case Color Black
Hardware
System on Chip or SoC Jazz-L
CPU Cores 4
TV Tuner Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 3 x HDMI 2.0 (ARC; CEC)
1 x Satellite In (Main; F-type female)
1 x Video Component In 3.5 mm jack
1 x Optical Audio Out
1 x AV Composite In 3.5 mm jack
2 x USB 2.0
1 x Ethernet RJ45
Audio
Audio Speakers 2 x 10W
Features
OS Tizen 2.4
Cool Features DIRECTV
Extended PVR
Ultra Clear Panel
Light sensor
Smart View 2.0
Voice command
PurColor
HDCP (High-bandwidth Digital Content Protection) 2.2
Anynet+ (HDMI-CEC)
UHD Dimming
Contrast Enhancer
UHD Upscaling
Ergonomics
Case Width 44.4 in
112.8 cm
1127.8 mm
3.7 ft
Case Height 25.8 in
65.5 cm
655.3 mm
2.15 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 400
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Motion Rate
Screen Interpolation Value 120
Screen Interpolation Measurement Unit MR
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.29 W
Power Consumption in Sleep Mode 0.3 W
Average Power Consumption 68 W
Power Consumption in Eco Mode 58 W
Maximum Power Consumption 180 W
Energy Class A+
Accessories
Extras 3.5 mm component adapter
3.5 mm composite adapter
Smart remote control - TM1650A
Certificates and Standards
Licenses ENERGY STAR
RoHS
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
Internal Storage Temperature -15 °C - 45 °C
5 °F - 113 °F
Internal Storage Humidity 10 % - 90 %
