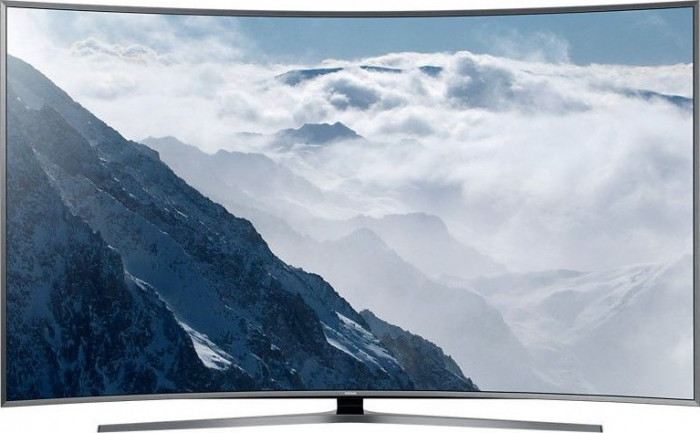

| Brand | Samsung |
| Type | TV |
| Size | 88" (inches) |
| Panel | SVA |
| Refresh Rate | 120 Hz |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| General Info | |
|---|---|
| Type | TV |
| Year | 2016 |
| Brand | Samsung |
| Model Series | KS9800 |
| Model Number | UE88KS9800 |
| Alias | UE88KS9800LXXN |
| Size | 88" (inches) |
| Panel | SVA |
| Operating System | Tizen 2.4 |
| Display | |
| Screen Size Class | 88" (inches) |
| Diagonal Size | 87.8 in 223 cm 2230 mm 7.32 ft |
| Screen Width | 76.52 in 194.4 cm 1943.61 mm 6.38 ft |
| Screen Height | 43.04 in 109.3 cm 1093.28 mm 3.59 ft |
| Display Curvature | 4200 |
| Display Manufacturer | Samsung |
| Display Type | SVA |
| Display Bit Depth | 10 bits |
| Frame Rate Control | Yes |
| Max Number of Colors | 1073741824 |
| Bits | 30 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| Screen Pixel Pitch | 0.506 mm |
| Screen Pixel Density | 50 ppi |
| Screen-to-Body Ratio | 95.39 % |
| Backlight Source | Direct LED (Full-Array Local Dimming) |
| DCI P3 | 96% |
| Max Screen Brightness | 1000 cd/m² |
| HDR | HDR 1000 |
| 3D | No |
| Size, weight, color | |
| Case Depth | 7.49 in 19 cm 190.2 mm 0.62 ft |
| Case Weight | 59 kg 130 lbs |
| Case Width with Stand | 77.29 in 196.3 cm 1963.1 mm 6.44 ft |
| Case Height with Stand | 47.93 in 121.7 cm 1217.3 mm 3.99 ft |
| Case Depth with Stand | 17.16 in 43.6 cm 435.8 mm 1.43 ft |
| Case Weight with Stand | 64.8 kg 143 lbs |
| Case Color | Black |
| Hardware | |
| System on Chip or SoC | Jazz-M |
| CPU Cores | 4 |
| CPU Frequency | 1200 |
| TV Tuner | Analog (NTSC/PAL/SECAM) DVB-T DVB-T2 DVB-S2 DVB-S DVB-C |
| Built-in Camera | No |
| Network | LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Bluetooth Wi-Fi Direct DLNA |
| Connectivity | 4 x HDMI 2.0 (ARC; CEC; MHL) 1 x Satellite In (Main; F-type female) 1 x Optical Audio Out 1 x Antenna (RF) (female) 1 x RS232 (C) 1 x Satellite In (Sub; F-type female) 3 x USB 1 x CI+ 1.3 1 x Ethernet RJ45 |
| Audio | |
| Audio Speakers | 2 x 20W |
| Built-in Subwoofer | 2 x 15 |
| Features | |
| OS | Tizen 2.4 |
| Cool Features | Voice command Auto Motion Plus UHD Upscaling Supreme UHD Dimming Ultra Black Digital Clean View Picture-in-Picture HDCP (High-bandwidth Digital Content Protection) 2.2 Local Dimming Smart View 2.0 Precision Black Pro Ultra Clean View Light sensor Extended PVR Anynet+ (HDMI-CEC) Quantum Dot Color Moth Eye Auto Depth Enhancer Peak Illuminator Ultimate |
| Ergonomics | |
| Case Width | 77.29 in 196.3 cm 1963.1 mm 6.44 ft |
| Case Height | 44.67 in 113.5 cm 1134.7 mm 3.72 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 600 x 400 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | No |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 120 Hz |
| Screen Interpolation Technology | Picture Quality Index |
| Screen Interpolation Value | 2600 |
| Screen Interpolation Measurement Unit | PQI |
| Power | |
| 110V | 100 V - 120 V |
| 220V | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption in Sleep Mode | 0.3 W |
| Power Consumption in Eco Mode | 160 W |
| Maximum Power Consumption | 575 W |
| Energy Class | A |
| Accessories | |
| Extras | One Connect Box Mini One connect cable Remote control - TM1240A Smart remote control - TM1680A |
| Certificates and Standards | |
| Licenses | RoHS |
| Usage and Storage Requirements | |
