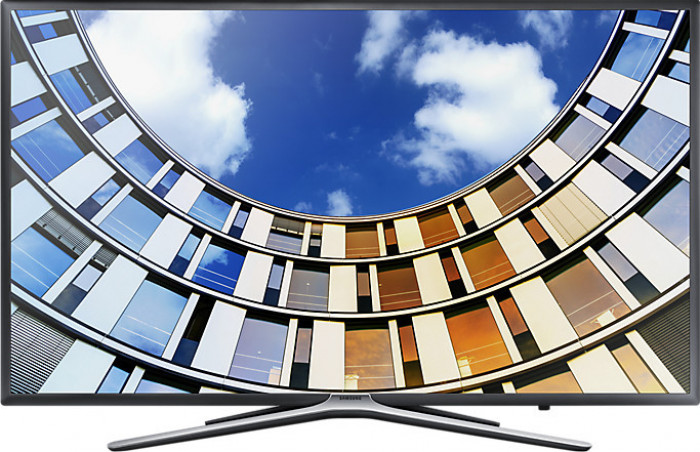

2017 55" Samsung UE55M5500 Specifications

Brand Samsung
Type TV
Size 55" (inches)
Panel VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type TV
Year 2017
Brand Samsung
Model Series M5500
Model Number UE55M5500
Size 55" (inches)
Panel VA
Operating System Android 8.0 Oreo
Android 9.0 Pie
Display
Screen Size Class 55" (inches)
Diagonal Size 54.65 in
138.8 cm
1388 mm
4.55 ft
Screen Width 47.63 in
121 cm
1209.75 mm
3.97 ft
Screen Height 26.79 in
68 cm
680.483 mm
2.23 ft
Display Type VA
Display Bit Depth 8 bits
Frame Rate Control No
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.63 mm
Screen Pixel Density 40 ppi
Screen-to-Body Ratio 91.91 %
Backlight Source Edge LED
DCI P3 95%
Rec.2020 75
sRGB 100 %
Static Screen Contrast 5000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Screen Input Lag 10 ms
HDR Dolby Vision
HDR10
HLG (Hybrid Log Gamma)
3D No
Size, weight, color
Case Depth 2.17 in
5.5 cm
55.1 mm
0.18 ft
Case Weight 16 kg
35 lbs
Case Width with Stand 48.88 in
124.2 cm
1241.6 mm
4.07 ft
Case Height with Stand 30.96 in
78.6 cm
786.4 mm
2.58 ft
Case Depth with Stand 11.57 in
29.4 cm
293.8 mm
0.96 ft
Case Weight with Stand 17.6 kg
39 lbs
Case Color Black
Hardware
System on Chip or SoC MediaTek MT5893
CPU ARM Cortex-A73
CPU Cores 4
CPU Frequency 1500
GPU ARM Mali-G71
RAM Memory Size 3
Internal Storage 16
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-C
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 3 x HDMI 1.4 (ARC; CEC)
1 x AV Composite In 3.5 mm jack
1 x Optical Audio Out
1 x CI+ 1.3
1 x Antenna (RF) (female)
1 x Video Component In 3.5 mm jack
2 x USB 2.0
1 x Ethernet RJ45
Audio
Audio Speakers 2 x 10W
Features
OS Android 8.0 Oreo
Android 9.0 Pie
Cool Features Contrast Enhancer
Extended PVR
Wide Color Enhancer Plus
HyperReal Engine
Mega Contrast
Light sensor
HDCP (High-bandwidth Digital Content Protection)
Anynet+ (HDMI-CEC)
Micro Dimming Pro
Auto Motion Plus
PurColor
Ergonomics
Case Width 48.88 in
124.2 cm
1241.6 mm
4.07 ft
Case Height 28.4 in
72.1 cm
721.4 mm
2.37 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 400
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Picture Quality Index
Screen Interpolation Value 800
Screen Interpolation Measurement Unit PQI
Power
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 230 W
Maximum Power Consumption 108 W
Energy Class A+
Accessories
Extras Smart remote control - TM1750A
Certificates and Standards
Licenses ENERGY STAR
RoHS
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
