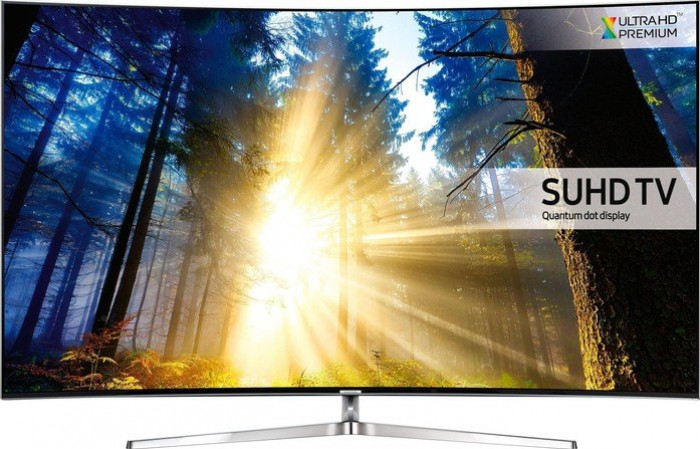

2016 55" Samsung UE55KS9000 Specifications

Brand Samsung
Type TV
Size 55" (inches)
Panel SVA, AMVA3
Refresh Rate 120 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2016
Brand Samsung
Model Series KS9000
Model Number UE55KS9000
Alias UE55KS9000L
UE55KS9000T
Size 55" (inches)
Panel SVA, AMVA3
Operating System Tizen 2.4
Display
Screen Size Class 55" (inches)
Diagonal Size 54.65 in
138.8 cm
1388 mm
4.55 ft
Screen Width 47.63 in
121 cm
1209.75 mm
3.97 ft
Screen Height 26.79 in
68 cm
680.483 mm
2.23 ft
Display Curvature 4200
Display Manufacturer Samsung
AU Optronics
Display Type SVA, AMVA3
Display Bit Depth 10 bits
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.315 mm
Screen Pixel Density 81 ppi
Screen-to-Body Ratio 94.15 %
Backlight Source Edge LED
DCI P3 96%
Rec.2020 75
Screen Brightness 550 cd/m²
Max Screen Brightness 1400 cd/m²
Static Screen Contrast 7000 : 1
Dynamic Screen Contrast 20000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Screen Input Lag 21 ms
Display Average Response Time 12 ms
Display Coating Glossy
HDR HDR 1000
3D No
Size, weight, color
Case Depth 3.67 in
9.3 cm
93.3 mm
0.31 ft
Case Weight 17.9 kg
39 lbs
Case Width with Stand 48.27 in
122.6 cm
1226 mm
4.02 ft
Case Height with Stand 31.5 in
80 cm
800 mm
2.62 ft
Case Depth with Stand 14.8 in
37.6 cm
376 mm
1.23 ft
Case Weight with Stand 20 kg
44 lbs
Case Color Silver
Hardware
System on Chip or SoC Jazz-M
CPU Cores 4
CPU Frequency 1200
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-S2
DVB-S
DVB-C
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 4 x HDMI 2.0 (ARC; CEC; MHL)
1 x Satellite In (Main; F-type female)
1 x Optical Audio Out
1 x Antenna (RF) (female)
1 x RS232 (C)
1 x Satellite In (Sub; F-type female)
3 x USB
1 x CI
1 x Ethernet RJ45
Audio
Audio Speakers 2 x 20W
Built-in Subwoofer 2 x 10
Features
OS Tizen 2.4
Cool Features Voice command
Auto Motion Plus
UHD Upscaling
Supreme UHD Dimming
Ultra Black
Digital Clean View
Picture-in-Picture
HDCP (High-bandwidth Digital Content Protection) 2.2
Local Dimming
Smart View 2.0
Precision Black
Ultra Clear Ultimate
Light sensor
Extended PVR
Anynet+ (HDMI-CEC)
Quantum Dot Color
Moth Eye
Auto Depth Enhancer
Peak Illuminator Pro
Ergonomics
Case Width 48.27 in
122.6 cm
1226 mm
4.02 ft
Case Height 28.08 in
71.3 cm
713.2 mm
2.34 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 400
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 120 Hz
Screen Interpolation Technology Picture Quality Index
Screen Interpolation Value 2400
Screen Interpolation Measurement Unit PQI
Power
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.5 W
Power Consumption in Sleep Mode 0.3 W
Average Power Consumption 100 W
Power Consumption in Eco Mode 60 W
Maximum Power Consumption 210 W
Energy Class A+
Accessories
Extras One Connect Box Mini
One connect cable
Remote control - TM1240A
Smart remote control - TM1680A
Certificates and Standards
Licenses RoHS
Usage and Storage Requirements
Safe Operating Temperature Level 10 °C - 40 °C
50 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
Internal Storage Temperature -20 °C - 45 °C
-4 °F - 113 °F
Internal Storage Humidity 5 % - 95 %
