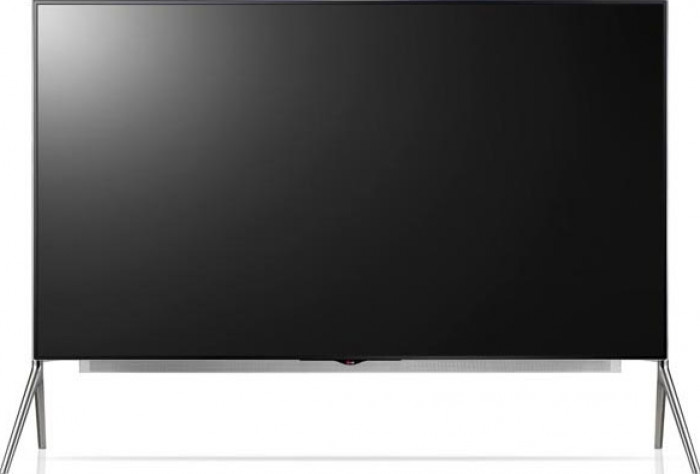

2014 98" LG 98UB9800 Specifications

Brand LG
Type TV
Size 98" (inches)
Panel S-IPS
Refresh Rate 120 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2014
Brand LG
Model Series UB980
Model Number 98UB9800
Size 98" (inches)
Panel S-IPS
Operating System webOS
Display
Screen Size Class 98" (inches)
Diagonal Size 97.52 in
247.7 cm
2477 mm
8.13 ft
Screen Width 84.99 in
215.9 cm
2158.85 mm
7.08 ft
Screen Height 47.81 in
121.4 cm
1214.35 mm
3.98 ft
Display Manufacturer LG Display
Display Type S-IPS
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.562 mm
Screen Pixel Density 45 ppi
Screen-to-Body Ratio 93.32 %
Backlight Source Direct LED
NTSC 1953 72 %
Screen Brightness 500 cd/m²
Static Screen Contrast 1300 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Display Minimum Response Time 5 ms
3D Yes
Size, weight, color
Case Depth 4.5 in
11.4 cm
114.3 mm
0.38 ft
Case Weight 97.2 kg
214 lbs
Case Width with Stand 87.09 in
221.2 cm
2212 mm
7.26 ft
Case Height with Stand 63.11 in
160.3 cm
1603 mm
5.26 ft
Case Depth with Stand 18.35 in
46.6 cm
466.2 mm
1.53 ft
Case Weight with Stand 102.2 kg
225 lbs
Case Color Black
Hardware
CPU Cores 2
TV Tuner Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM
Built-in Camera Yes
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 1 x Ethernet RJ45
4 x HDMI 2.0 (ARC; CEC; MHL)
1 x AV Composite In 3.5 mm jack
1 x Optical Audio Out
1 x Video Component In 3.5 mm jack
1 x Satellite In (Main; F-type female)
2 x USB 2.0
1 x 3.5 mm Audio Out
1 x USB 3.0
1 x RS232 (C)
Audio
Audio Speakers 2 x 10W
Built-in Subwoofer 2 x 30
Features
OS webOS
Cool Features Clear Voice II
Voice command
Dynamic Clear White
Tru-Black Control
HDCP (High-bandwidth Digital Content Protection) 2.2
Picture Wizard III
ULTRA Surround
Tru Color Generator
Local Dimming
Dynamic Color Enhancer
4K Upscaler
ULTRA HD Engine Pro
SIMPLINK (HDMI CEC)
Active Noise Reduction
Triple XD Engine
Ergonomics
Case Width 87.09 in
221.2 cm
2212 mm
7.26 ft
Case Height 50 in
127 cm
1270 mm
4.17 ft
Vesa Mount Support No
VESA Interface Standard Size 600 x 400
Removable VESA Stand No
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 120 Hz
Screen Interpolation Technology Ultra Clarity Index
Screen Interpolation Value 1560
Screen Interpolation Measurement Unit UCI
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Electric Power in Amperes 6.1 A
Power Consumption in Sleep Mode 0.3 W
Maximum Power Consumption 610 W
Accessories
Extras 2 x 3D passive glasses
Certificates and Standards
Licenses ENERGY STAR
RoHS
UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
Internal Storage Temperature -20 °C - 60 °C
-4 °F - 140 °F
Internal Storage Humidity 5 % - 85 %
