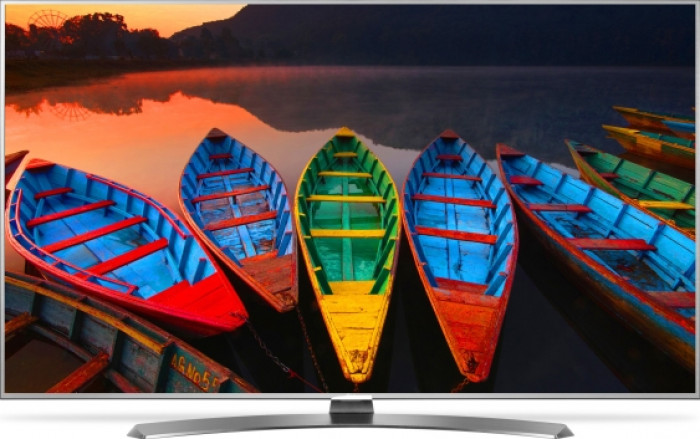

2016 65" LG 65UH7700 Specifications

Brand LG
Type TV
Size 65" (inches)
Panel IPS
Refresh Rate 120 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2016
Brand LG
Model Series UH770
Model Number 65UH7700
Alias 65UH7700-UB
Size 65" (inches)
Panel IPS
Operating System webOS 3.0
Display
Screen Size Class 65" (inches)
Diagonal Size 64.53 in
163.9 cm
1639 mm
5.38 ft
Screen Width 56.24 in
142.9 cm
1428.51 mm
4.69 ft
Screen Height 31.64 in
80.4 cm
803.538 mm
2.64 ft
Display Manufacturer LG Display
Display Type IPS
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.372 mm
Screen Pixel Density 68 ppi
Screen-to-Body Ratio 93.55 %
Backlight Source Edge LED
DCI P3 77%
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR Dolby Vision VS10
HDR Super
HLG (Hybrid Log Gamma)
3D No
Size, weight, color
Case Depth 2.22 in
5.6 cm
56.3 mm
0.18 ft
Case Weight 27 kg
59 lbs
Case Width with Stand 57.44 in
145.9 cm
1459 mm
4.79 ft
Case Height with Stand 35.28 in
89.6 cm
896 mm
2.94 ft
Case Depth with Stand 10.98 in
27.9 cm
279 mm
0.92 ft
Case Weight with Stand 29.1 kg
64 lbs
Case Color Silver
Hardware
System on Chip or SoC RealTek RTD2999
CPU ARM Cortex-A53
CPU Cores 4
TV Tuner Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 1 x Ethernet RJ45
3 x HDMI 2.0 (ARC; CEC)
1 x AV Composite In 3.5 mm jack
1 x Optical Audio Out
1 x Video Component In 3.5 mm jack
1 x Satellite In (Main; F-type female)
2 x USB 2.0
1 x RS232 (C)
1 x USB 3.0
Audio
Audio Speakers 2 x 10W
Features
OS webOS 3.0
Cool Features HDCP (High-bandwidth Digital Content Protection) 2.2
Local Dimming
ULTRA Luminance
SIMPLINK (HDMI CEC)
True Black Panel
Voice command
Super Mastering Engine
PVR
4K Upscaler
True Color Accuracy
Clear Voice III
Quantum Display
Ergonomics
Case Width 57.44 in
145.9 cm
1459 mm
4.79 ft
Case Height 33.11 in
84.1 cm
841 mm
2.76 ft
Vesa Mount Support Yes
VESA Interface Standard Size 300 x 300
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 120 Hz
Screen Interpolation Technology TruMotion
Screen Interpolation Value 240
Screen Interpolation Measurement Unit PPI
Power
110V 100 V - 120 V
AC Frequency 50 Hz - 60 Hz
Electric Power in Amperes 2.1 A
Power Consumption When Device is Off 0.5 W
Power Consumption in Sleep Mode 0.5 W
Maximum Power Consumption 210 W
Accessories
Extras 3.5 mm component adapter
3.5 mm composite adapter
Remote control - MR15R
Certificates and Standards
Licenses ENERGY STAR
RoHS
UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
Internal Storage Temperature -20 °C - 60 °C
-4 °F - 140 °F
Internal Storage Humidity 5 % - 85 %
