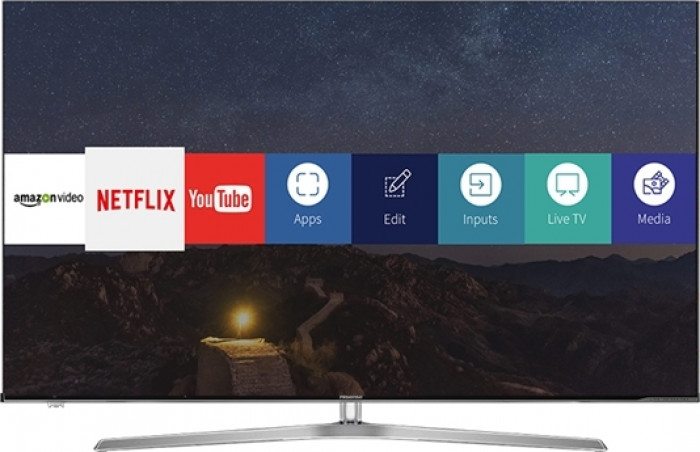

2018 55" Hisense H55U7A Specifications

Compare

General Info

Type TV
Year 2018
Brand Hisense
Model Series U7A
Model Code H55U7A
Alias HE55U7A1WTSG

Display

Screen Size Class 55" (inches)
Diagonal Size 54.65 in
138.8 cm
1388 mm
4.55 ft
Screen Width 47.62 in
121 cm
1209.6 mm
3.97 ft
Screen Height 26.79 in
68 cm
680.4 mm
2.23 ft
Display Type VA
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 1.778:1
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.315 mm
Screen Pixel Density 80 ppi
Screen-to-Body Ratio 93.06 %
Backlight Source Edge LED
DCI P3 70%
Rec.2020 65
Screen Brightness 400 cd/m²
Max Screen Brightness 600 cd/m²
Static Screen Contrast 5500 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Screen Input Lag 22 ms
HDR HDR10
HLG (Hybrid Log Gamma)
3D No

Size, weight, color

Case Depth 2.05 in
5.2 cm
52 mm
0.17 ft
Case Weight 18.6 kg
41 lbs
Case Width with Stand 48.43 in
123 cm
1230 mm
4.04 ft
Case Height with Stand 30.94 in
78.6 cm
786 mm
2.58 ft
Case Depth with Stand 10.31 in
26.2 cm
262 mm
0.86 ft
Case Weight with Stand 20.6 kg
45 lbs
Case Color Black

Hardware

CPU Cores 4
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S2
DVB-S
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Connectivity 1 x Ethernet RJ45
2 x HDMI 1.4 (CEC)
1 x Satellite In (Main; F-type female)
1 x S/PDIF
1 x AV Composite In (Video + L/R)
2 x HDMI 2.0 (ARC; CEC)
2 x USB 2.0 (max 0.5 A)
1 x Antenna (RF) (female)
1 x USB 3.0 (max 1 A)
1 x CI+ 1.3

Audio

Audio Speakers 2 x 10W

Features

OS VIDAA U2.5
Features HDCP (High-bandwidth Digital Content Protection) 2.2
Hi-View Engine Plus
Ultra Color
Ultra Motion
Ultra Dimming
PVR
4K Upscaling
Wide Color Gamut
Backlight Scanning

Ergonomics

Case Width 48.43 in
123 cm
1230 mm
4.04 ft
Case Height 28.31 in
71.9 cm
719 mm
2.36 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 200
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No

Frequency and interpolation

Vertical Digital Frequency 120 Hz
Screen Interpolation Technology Picture Criteria Index
Screen Interpolation Value 2400
Screen Interpolation Measurement Unit PCI

Power

220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.5 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 112 W
Power Consumption in Eco Mode 70 W
Energy Class A

Accessories

Extras Remote control - EN3Y39H

Certificates and Standards

Licenses RoHS
WEEE

Usage and Storage Requirements

Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
