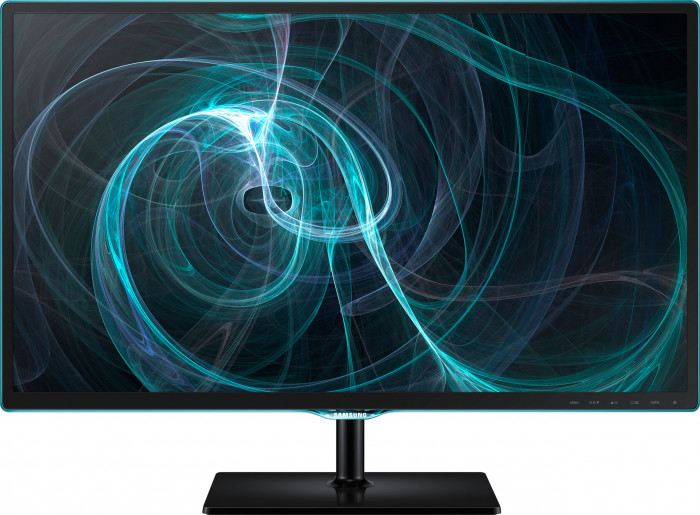

2014 22" Samsung S22D390H Specifications

Brand Samsung
Type Monitor
Size 22" (inches)
Panel TN
Refresh Rate 75 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type Monitor
Year 2014
Brand Samsung
Model Number S22D390H
Alias LS22D390HS/XK
LS22D390HS/XY
Size 22" (inches)
Panel TN
Operating System Custom OS (Android 6.0 Marshmallow)
Display
Screen Size Class 22" (inches)
Diagonal Size 21.5 in
54.6 cm
546 mm
1.79 ft
Screen Width 18.77 in
47.7 cm
476.64 mm
1.56 ft
Screen Height 10.56 in
26.8 cm
268.11 mm
0.88 ft
Display Type TN
Display Bit Depth 8 bits
Frame Rate Control No
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.248 mm
Screen Pixel Density 102 ppi
Screen-to-Body Ratio 76.87 %
Backlight Source W-LED
Rec.2020 70
NTSC 1953 72 %
Screen Brightness 250 cd/m²
Static Screen Contrast 1000 : 1
Screen Horizontal Viewing Angle 170 °
Screen Vertical Viewing Angle 160 °
Screen Input Lag 50 ms
Display Minimum Response Time 5 ms
Display Coating Anti-glare/Matte
HDR HLG (Hybrid Log Gamma)
HDR10
3D No
Size, weight, color
Case Depth 3.22 in
8.2 cm
81.7 mm
0.27 ft
Case Weight 2.95 kg
6 lbs
Case Width with Stand 20.24 in
51.4 cm
514.2 mm
1.69 ft
Case Height with Stand 15.8 in
40.1 cm
401.4 mm
1.32 ft
Case Depth with Stand 7.28 in
18.5 cm
184.9 mm
0.61 ft
Case Weight with Stand 3.2 kg
7 lbs
Case Color Black
Hardware
CPU Cores 4
RAM Memory Size 1.5
Internal Storage 8
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S
DVB-S2
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Wi-Fi Direct
Connectivity 1 x 3.5 mm Audio Out
1 x HDMI 1.4
1 x D-sub
Audio
Features
OS Custom OS (Android 6.0 Marshmallow)
Cool Features Flicker-free technology
Samsung MagicBright
Samsung MagicUpscale
Eco Saving Plus
Eye Saver Mode
Ergonomics
Case Width 20.24 in
51.4 cm
514.2 mm
1.69 ft
Case Height 12.73 in
32.3 cm
323.3 mm
1.06 ft
Vesa Mount Support No
VESA Interface Standard Size 75 x 75
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support Yes
Forward Tilt 1 °
Backward Tilt 20 °
Frequency and Interpolation
Vertical Digital Frequency 56 Hz - 75 Hz
Horizontal Digital Frequency 30 kHz - 81 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.3 W
Average Power Consumption 21 W
Maximum Power Consumption 760 W
Energy Class B
Accessories
Extras D-sub cable
Certificates and Standards
Licenses CE
ENERGY STAR 6.0
FCC class B
Usage and Storage Requirements
Safe Operating Temperature Level 10 °C - 40 °C
50 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
Internal Storage Temperature -20 °C - 45 °C
-4 °F - 113 °F
Internal Storage Humidity 5 % - 95 %
