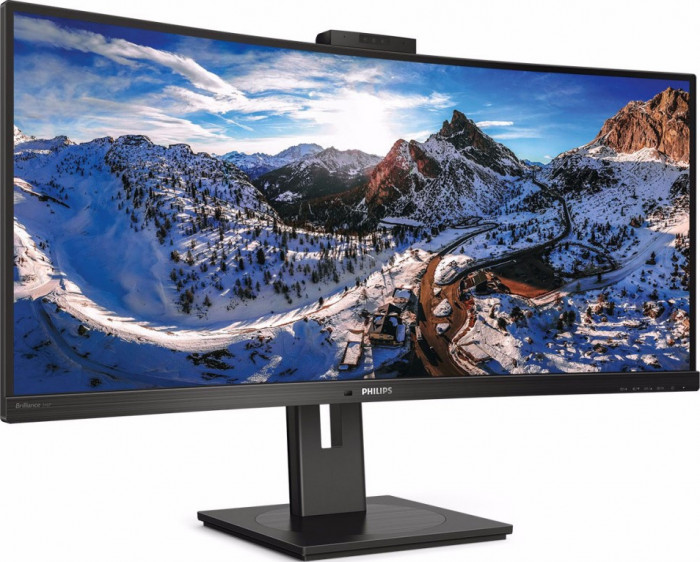

2020 34" Philips 346P1CRH Specifications

Brand Philips
Type Monitor
Size 34" (inches)
Panel VA
Refresh Rate 100 Hz
Min Response Time 4 ms
Screen Aspect Ratio 21:9
Screen Resolution 3440 x 1440
General Info
Type Monitor
Year 2020
Brand Philips
Model Series P-Line
Model Number 346P1CRH
Alias 346P1CRH/01
Size 34" (inches)
Panel VA
Display
Screen Size Class 34" (inches)
Diagonal Size 34 in
86.4 cm
863.6 mm
2.83 ft
Screen Width 31.39 in
79.7 cm
797.2 mm
2.62 ft
Screen Height 13.3 in
33.8 cm
337.7 mm
1.11 ft
Display Curvature 1500
Display Manufacturer Samsung
Display Type VA
Display Bit Depth 8 bits
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 21:9
Screen Resolution 3440 x 1440
Screen Pixel Pitch 0.232 mm
Screen Pixel Density 109 ppi
Screen-to-Body Ratio 90.9 %
Backlight Source W-LED
DCI P3 90%
sRGB 120 %
Adobe RGB 1998 88 %
NTSC 1953 98 %
Max Screen Brightness 500 cd/m²
Static Screen Contrast 3000 : 1
Dynamic Screen Contrast 80000000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Display Minimum Response Time 4 ms
Display Coating Anti-glare/Matte (2H)
HDR DisplayHDR 400
3D No
Size, weight, color
Case Depth 4.33 in
11 cm
110 mm
0.36 ft
Case Weight 7.95 kg
17 lbs
Case Width with Stand 31.77 in
80.7 cm
807 mm
2.65 ft
Case Height with Stand 23.66 in
60.1 cm
601 mm
1.97 ft
Case Depth with Stand 9.84 in
25 cm
250 mm
0.82 ft
Case Weight with Stand 11.65 kg
26 lbs
Case Color Black
Hardware
Built-in Camera Yes
Network LAN
Connectivity 1 x USB 3.2 (downstream; BC 1.2)
1 x USB 3.2 (Type-C; Gen 2; upstream; 90W; DisplayPort)
1 x HDMI 2.0 (HDCP 2.2)
1 x 3.5 mm Audio Out
1 x DisplayPort 1.4 (HDCP 1.4)
1 x Ethernet RJ45
1 x USB (Type-B; upstream)
3 x USB 3.2 (downstream)
Audio
Audio Speakers 2 x 5W
Features
Cool Features KVM switch
LightSensor
Picture-by-Picture
PowerSensor
Picture-in-Picture
Low Blue Light
Adaptive-Sync Technology
SmartImage
Flicker-free technology
SmartControl
Extra Features Anti-theft stand lock slot - Kensington
Ergonomics
Case Width 31.77 in
80.7 cm
807 mm
2.65 ft
Case Height 14.45 in
36.7 cm
367 mm
1.2 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment Yes
Height Adjustment Range 180 mm
18 cm
7.0866 in
0.5906 ft
Landscape or Portrait Pivot Support No
Left or Right Swivel Support Yes
Left Swivel 180 °
Right Swivel 180 °
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 25 °
Frequency and Interpolation
Vertical Digital Frequency 48 Hz - 100 Hz
Horizontal Digital Frequency 30 kHz - 160 kHz
Screen Interpolation Measurement Unit NULL
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption in Sleep Mode 0.3 W
Average Power Consumption 34.1 W
Power Consumption in Eco Mode 33 W
Energy Class B
Accessories
Extras HDMI cable
DisplyPort cable
USB-C/A Y cable
Certificates and Standards
Licenses CB
CCC
CE Mark
CEL
cETLus
CU-EAC
ENERGY STAR 8.0
EPA
EPEAT
FCC Class B
RCM
SEMKO
TUV Ergo
TUV/GS
Ukrainian
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 20 % - 80 %
Internal Storage Temperature -20 °C - 60 °C
-4 °F - 140 °F
Internal Storage Humidity 20 % - 80 %
Max Operating Altitude 3658
Max Storage Altitude 12192
