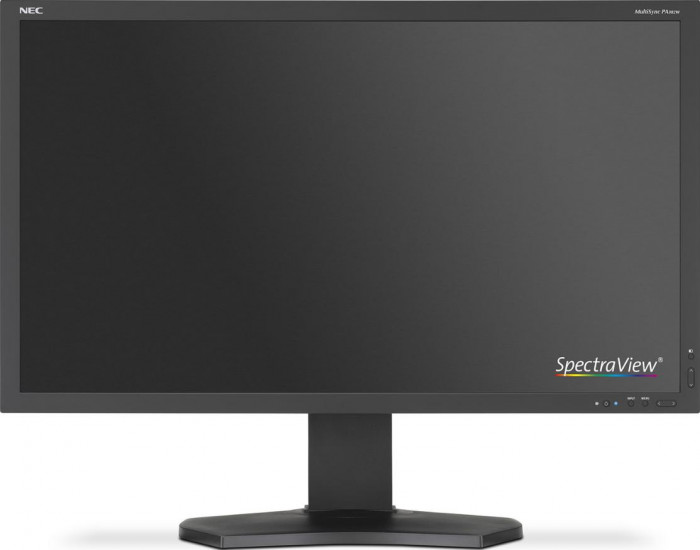

2013 30" NEC MultiSync PA302W-BK-SV Specifications

Brand	NEC
Type	Monitor
Size	30" (inches)
Panel	AH-IPS
Refresh Rate	85 Hz
Min Response Time	7 ms
Screen Aspect Ratio	16:10
Screen Resolution	2560 x 1600
Price	1999.99

Check on Amazon

Compare

General Info
Type	Monitor
Year	2013
Brand	NEC
Model Number	MultiSync PA302W-BK-SV
Size	30" (inches)
Panel	AH-IPS
Display
Screen Size Class	30" (inches)
Diagonal Size	29.77 in 75.6 cm 756.2 mm 2.48 ft
Screen Width	25.25 in 64.1 cm 641.28 mm 2.1 ft
Screen Height	15.78 in 40.1 cm 400.8 mm 1.31 ft
Display Manufacturer	LG Display
Display Type	AH-IPS
Display Bit Depth	10 bits
Lut	3D LUT 14 bits
Max Number of Colors	1073741824
Bits	30
Screen Aspect Ratio	16:10
Screen Resolution	2560 x 1600
Screen Pixel Pitch	0.251 mm
Screen Pixel Density	101 ppi
Screen-to-Body Ratio	83.61 %
Backlight Source	GB-r LED
sRGB	146.4 %
Adobe RGB 1998	99.3 %
NTSC 1953	94.8 %
Screen Brightness	340 cd/m²
Static Screen Contrast	1000 : 1
Screen Horizontal Viewing Angle	178 °
Screen Vertical Viewing Angle	178 °
Screen Input Lag	34 ms
Display Minimum Response Time	7 ms
Display Average Response Time	15 ms
Display Maximum Response Time	18 ms
Display Coating	Anti-glare/Matte (3H)
3D	No
Size, weight, color
Case Depth	3.23 in 8.2 cm 82 mm 0.27 ft
Case Weight	10.7 kg 24 lbs
Case Width with Stand	27.1 in 68.8 cm 688.3 mm 2.26 ft
Case Height with Stand	18.36 in 46.6 cm 466.4 mm 1.53 ft
Case Depth with Stand	11.87 in 30.2 cm 301.6 mm 0.99 ft
Case Weight with Stand	17 kg 37 lbs
Case Color	Black, White
Hardware
Built-in Camera	No
Connectivity	1 x HDMI 1.4 1 x DisplayPort 1.2 1 x DVI-D Dual Link 1 x DisplayPort 1.2 (mini) 3 x USB 2.0 (downstream) 2 x USB 2.0 (upstream)
Audio
Features
Cool Features	Carbon Footprint Meter XtraView+ Digital Uniformity Correction SpectraView II HDCP (High-bandwidth Digital Content Protection) Picture-by-Picture TileMatrix Standalone hardware calibration Light sensor DisplaySync Pro Black Level Adjusment TileComp Picture-in-Picture CableComp Self Diagnostics
Ergonomics
Case Width	27.09 in 68.8 cm 688 mm 2.26 ft
Case Height	17.59 in 44.7 cm 446.8 mm 1.47 ft
Vesa Mount Support	Yes
VESA Interface Standard Size	100 x 100
Removable VESA Stand	Yes
Height Adjustment	Yes
Height Adjustment Range	150 mm 15 cm 5.9055 in 0.4921 ft
Landscape or Portrait Pivot Support	Yes
Left Pivot	0 °
Right Pivot	90 °
Left or Right Swivel Support	Yes
Left Swivel	45 °
Right Swivel	45 °
Forward and Backward Tilt Support	Yes
Forward Tilt	5 °
Backward Tilt	30 °
Frequency and Interpolation
Vertical Digital Frequency	50 Hz - 85 Hz
Horizontal Digital Frequency	31.5 kHz - 98.7 kHz
Power
110V	100 V - 120 V
220V	220 V - 240 V
AC Frequency	50 Hz - 60 Hz
Electric Power in Amperes	1.1 A
Power Consumption When Device is Off	0.2 W
Power Consumption in Sleep Mode	1.4 W
Average Power Consumption	52 W
Power Consumption in Eco Mode	32 W
Maximum Power Consumption	96 W
Accessories
Extras	Color calibration sensor (MDSVSENSOR3) DVI cable DisplayPort cable DisplayPort cable - mini-DP to DP USB cable
Certificates and Standards
Licenses	C-Tick CCC CE ErP FCC Class B ISO 9241-307 MPR II / MPR III PCBC/B-mark PCT/Gost PSB RoHS TÜV/Ergonomics TÜV/GS UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level	5 °C - 35 °C 41 °F - 95 °F
Safe Operating Humidity Level	20 % - 80 %
Internal Storage Temperature	-20 °C - 60 °C -4 °F - 140 °F
Internal Storage Humidity	10 % - 85 %
Max Operating Altitude	5000
Max Storage Altitude	12192
