| Brand | NEC |
| Type | Monitor |
| Size | 24" (inches) |
| Panel | TN |
| Refresh Rate | 76 Hz |
| Min Response Time | 5 ms |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| General Info | |
|---|---|
| Type | Monitor |
| Year | 2014 |
| Brand | NEC |

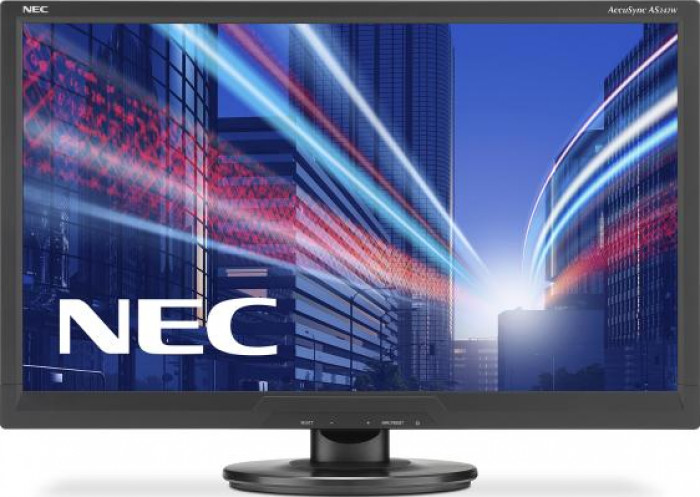

| Model Number | AccuSync AS242W |
| Alias | AS242W-BK |
| Size | 24" (inches) |
| Panel | TN |
| Display | |
| Screen Size Class | 24" (inches) |
| Diagonal Size | 24.07 in 61.1 cm 611.3 mm 2.01 ft |
| Screen Width | 20.92 in 53.1 cm 531.36 mm 1.74 ft |
| Screen Height | 11.77 in 29.9 cm 298.89 mm 0.98 ft |
| Display Type | TN |
| Display Bit Depth | 8 bits |
| Frame Rate Control | Yes |
| Max Number of Colors | 16777216 |
| Bits | 24 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| Screen Pixel Pitch | 0.272 mm |
| Screen Pixel Density | 91 ppi |
| Screen-to-Body Ratio | 79.23 % |
| Backlight Source | W-LED |
| NTSC 1953 | 72 % |
| Screen Brightness | 250 cd/m² |
| Static Screen Contrast | 1000 : 1 |
| Screen Horizontal Viewing Angle | 170 ° |
| Screen Vertical Viewing Angle | 160 ° |
| Display Minimum Response Time | 5 ms |
| Display Coating | Anti-glare/Matte |
| 3D | No |
| Size, weight, color | |
| Case Depth | 1.98 in 5 cm 50.4 mm 0.17 ft |
| Case Weight | 3.6 kg 8 lbs |
| Case Width with Stand | 22.5 in 57.1 cm 571.4 mm 1.87 ft |
| Case Height with Stand | 15.78 in 40.1 cm 400.9 mm 1.32 ft |
| Case Depth with Stand | 8.31 in 21.1 cm 211.2 mm 0.69 ft |
| Case Weight with Stand | 4 kg 9 lbs |
| Case Color | Black |
| Hardware | |
| Built-in Camera | No |
| Connectivity | 1 x DVI-D Dual Link 1 x D-sub |
| Audio | |
| Features | |
| Cool Features | NaViSet software XtraView EcoModes HDCP (High-bandwidth Digital Content Protection) |
| Ergonomics | |
| Case Width | 22.5 in 57.1 cm 571.4 mm 1.87 ft |
| Case Height | 13.81 in 35.1 cm 350.8 mm 1.15 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 100 x 100 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | Yes |
| Forward Tilt | 4 ° |
| Backward Tilt | 21 ° |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 56 Hz - 76 Hz |
| Horizontal Digital Frequency | 31.5 kHz - 81.1 kHz |
| Power | |
| 110V | 100 V - 120 V |
| 220V | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Electric Power in Amperes | 1 A |
| Power Consumption When Device is Off | 0.3 W |
| Power Consumption in Sleep Mode | 0.5 W |
| Average Power Consumption | 20 W |
| Power Consumption in Eco Mode | 13 W |
| Maximum Power Consumption | 24 W |
| Energy Class | A |
| Accessories | |
| Extras | D-sub cable |
| Certificates and Standards | |
| Licenses | CCC CE EAC ENERGY STAR 5.0 ErP FCC Class B ISO 9241-307 MPR II / MPR III PSB RoHS TCO 6.0 TÜV/Ergonomics TÜV/GS UL/cUL |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % |
| Internal Storage Temperature | -10 °C - 60 °C 14 °F - 140 °F |
| Internal Storage Humidity | 10 % - 85 % |
| Max Operating Altitude | 2000 |
| Max Storage Altitude | 12192 |
