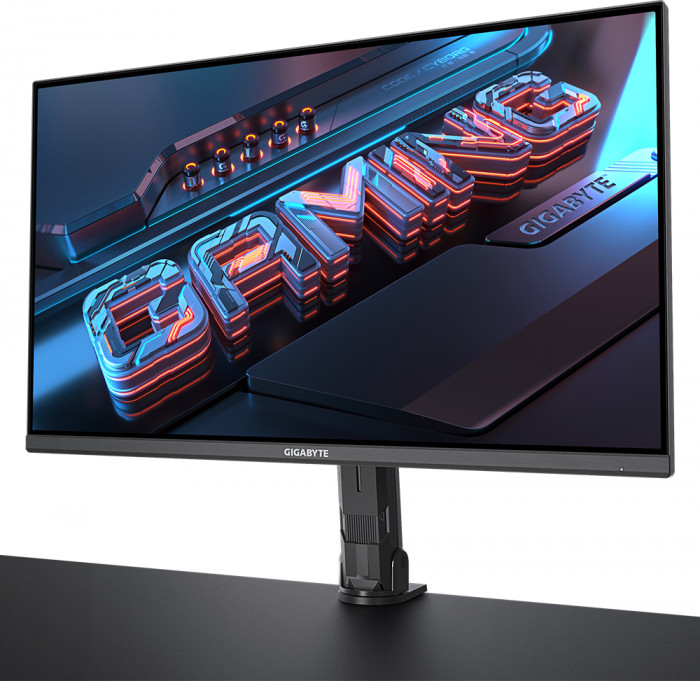

2022 32" Gigabyte M32U Arm Edition Specifications

Brand Gigabyte
Type Monitor
Size 32" (inches)
Panel IPS
Refresh Rate 144 Hz
Min Response Time 2 ms
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type Monitor
Year 2022
Brand Gigabyte
Model Number M32U Arm Edition
Alias M32U-AE
Size 32" (inches)
Panel IPS
Display
Screen Size Class 32" (inches)
Diagonal Size 31.54 in
80.1 cm
801 mm
2.63 ft
Screen Width 27.45 in
69.7 cm
697.306 mm
2.29 ft
Screen Height 15.44 in
39.2 cm
392.234 mm
1.29 ft
Display Manufacturer Innolux
Display Type IPS
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.181 mm
Screen Pixel Density 140 ppi
Screen-to-Body Ratio 90.16 %
Backlight Source W-LED
DCI P3 90%
sRGB 123 %
Screen Brightness 350 cd/m²
Max Screen Brightness 450 cd/m²
Static Screen Contrast 1000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Screen Input Lag 4 ms
Display Minimum Response Time 2 ms
Display Average Response Time 7 ms
Display Coating Anti-glare/Matte
HDR DisplayHDR 400
3D No
Size, weight, color
Case Depth 2.69 in
6.8 cm
68.2 mm
0.22 ft
Case Weight 7.21 kg
16 lbs
Case Width with Stand 28.18 in
71.6 cm
715.8 mm
2.35 ft
Case Height with Stand 23.14 in
58.8 cm
587.7 mm
1.93 ft
Case Depth with Stand 8.7 in
22.1 cm
221 mm
0.73 ft
Case Weight with Stand 10.53 kg
23 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x USB 3.0 (Type-C; upstream)
2 x HDMI 2.1
1 x 3.5 mm Audio Out
1 x DisplayPort 1.4 (DSC; HBR3)
3 x USB 3.0 (Type-A; downstream; BC 1.2 charging at 5V/1.5A)
1 x USB 3.0 (Type-B; upstream)
Audio
Audio Speakers 2 x 3W
Features
Cool Features Display Stream Compression (DSC)
Flicker-free technology
Smart OD
KVM Switch
OSD Sidekick
Low Blue Light
GameAssist (Aim Stabilizer / Crosshair / Dashboard / Black Equalizer / Timer / Counter / Auto-Update)
6-axis color control
Picture-by-Picture
Adaptive-Sync technology
Picture-in-Picture
Extra Features Anti-theft stand lock slot - Kensington
Ergonomics
Case Width 28.18 in
71.6 cm
715.8 mm
2.35 ft
Case Height 16.69 in
42.4 cm
423.8 mm
1.39 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment Yes
Height Adjustment Range 167 mm
16.7 cm
6.5748 in
0.5479 ft
Landscape or Portrait Pivot Support Yes
Left Pivot 0 °
Right Pivot 90 °
Left or Right Swivel Support Yes
Left Swivel 270 °
Right Swivel 270 °
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 25 °
Frequency and Interpolation
Vertical Digital Frequency 48 Hz - 144 Hz
Screen Interpolation Measurement Unit NULL
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Electric Power in Amperes 3.42 A
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 45.5 W
Maximum Power Consumption 115 W
Accessories
Extras DisplayPort cable
HDMI cable
USB cable
Ergonomic arm
Certificates and Standards
Licenses Eyesafe certified
TÜV Rheinland Flicker-free certified
TÜV Rheinland Low Blue Light certified
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
