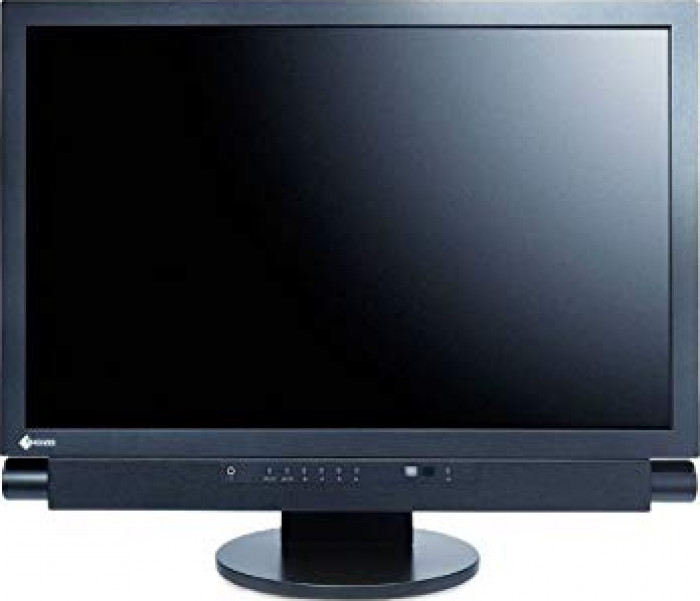

2009 24" EIZO FX2431 Specifications

Brand EIZO
Type Monitor
Size 24" (inches)
Panel S-PVA
Refresh Rate 61 Hz
Min Response Time 6 ms
Screen Aspect Ratio 16:10
Screen Resolution 1920 x 1200
General Info
Type Monitor
Year 2009
Brand EIZO
Model Series Foris
Model Number FX2431
Alias FX2431-BK
Size 24" (inches)
Panel S-PVA
Display
Screen Size Class 24" (inches)
Diagonal Size 24.06 in
61.1 cm
611 mm
2 ft
Screen Width 20.41 in
51.8 cm
518.4 mm
1.7 ft
Screen Height 12.76 in
32.4 cm
324 mm
1.06 ft
Display Manufacturer Samsung
Display Type S-PVA
Display Bit Depth 8 bits
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:10
Screen Resolution 1920 x 1200
Screen Pixel Pitch 0.27 mm
Screen Pixel Density 94 ppi
Screen-to-Body Ratio 71.33 %
Backlight Source CCFL
Adobe RGB 1998 96 %
NTSC 1953 92 %
Screen Brightness 360 cd/m²
Static Screen Contrast 1000 : 1
Dynamic Screen Contrast 2000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Screen Input Lag 38 ms
Display Minimum Response Time 6 ms
Display Average Response Time 16 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Depth 3.63 in
9.2 cm
92.3 mm
0.3 ft
Case Weight 8.1 kg
18 lbs
Case Width with Stand 22.28 in
56.6 cm
566 mm
1.86 ft
Case Height with Stand 17.48 in
44.4 cm
444 mm
1.46 ft
Case Depth with Stand 9.06 in
23 cm
230 mm
0.75 ft
Case Weight with Stand 10.5 kg
23 lbs
Case Color Black, White
Hardware
Built-in Camera No
Connectivity 2 x HDMI
1 x DVI-D Dual Link
1 x S-Video
1 x AV Component In (YPbPr + L/R)
1 x AV Composite In (Video + L/R)
1 x D-sub
2 x USB 2.0 (downstream)
3 x 3.5 mm Audio In
2 x USB 2.0 (upstream)
Audio
Audio Speakers 2 x 2W
Features
Cool Features HDCP (High-bandwidth Digital Content Protection)
Picture-in-Picture
Thru Mode
Contrast Enhancer
EcoView
Ergonomics
Case Width 22.28 in
56.6 cm
566 mm
1.86 ft
Case Height 16.38 in
41.6 cm
416 mm
1.36 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment Yes
Height Adjustment Range 24 mm
2.4 cm
0.9449 in
0.0787 ft
Landscape or Portrait Pivot Support No
Left or Right Swivel Support Yes
Left Swivel 35 °
Right Swivel 35 °
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 35 °
Frequency and Interpolation
Vertical Digital Frequency 59 Hz - 61 Hz
Horizontal Digital Frequency 31.5 kHz - 76 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Electric Power in Amperes 1.1 A
Power Consumption When Device is Off 1 W
Power Consumption in Sleep Mode 1.3 W
Average Power Consumption 85 W
Power Consumption in Eco Mode 40 W
Maximum Power Consumption 110 W
Accessories
Extras D-sub cable
DVI-D cable
Remote control
USB 2.0 upstream cable
Certificates and Standards
Licenses CB
CCC
CE
cTÜVus
EAC
ENERGY STAR
Epeat Silver
FCC Class B
ICES-003-B
RCM
RoHS
TÜV/Ergonomics
TÜV/GS
VCCI-B
WEEE
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
Internal Storage Temperature -20 °C - 60 °C
-4 °F - 140 °F
Internal Storage Humidity 10 % - 80 %
