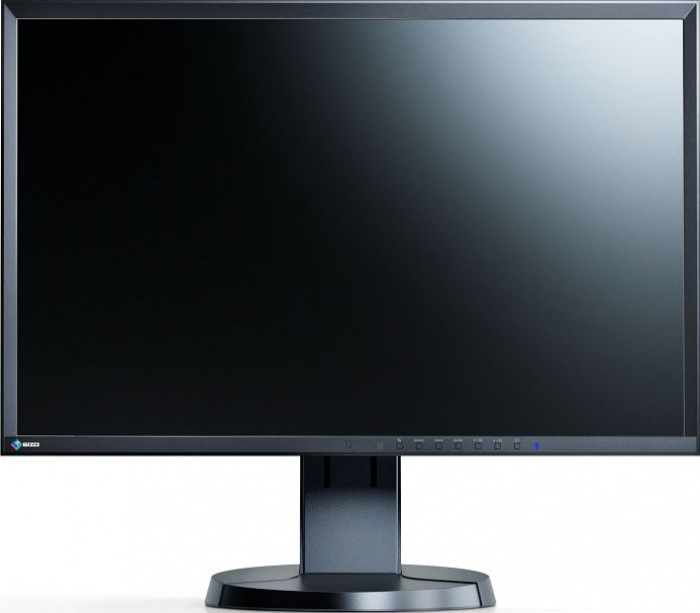

2012 22" EIZO FlexScan EV2216W Specifications

Brand EIZO
Type Monitor
Size 22" (inches)
Panel TN
Refresh Rate 61 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:10
Screen Resolution 1650 x 1050
General Info
Type Monitor
Year 2012
Brand EIZO
Model Number FlexScan EV2216W
Size 22" (inches)
Panel TN
Display
Screen Size Class 22" (inches)
Diagonal Size 22 in
55.9 cm
558.8 mm
1.83 ft
Screen Width 18.65 in
47.4 cm
473.76 mm
1.55 ft
Screen Height 11.66 in
29.6 cm
296.1 mm
0.97 ft
Display Type TN
Display Bit Depth 8 bits (6 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:10
Screen Resolution 1650 x 1050
Screen Pixel Pitch 0.282 mm
Screen Pixel Density 88 ppi
Screen-to-Body Ratio 85.93 %
Backlight Source W-LED
NTSC 1953 72 %
Screen Brightness 250 cd/m²
Static Screen Contrast 1000 : 1
Screen Horizontal Viewing Angle 170 °
Screen Vertical Viewing Angle 160 °
Display Minimum Response Time 5 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Depth 2.13 in
5.4 cm
54 mm
0.18 ft
Case Weight 3.3 kg
7 lbs
Case Width with Stand 19.69 in
50 cm
500 mm
1.64 ft
Case Height with Stand 14.49 in
36.8 cm
368 mm
1.21 ft
Case Depth with Stand 9.17 in
23.3 cm
233 mm
0.76 ft
Case Weight with Stand 5.6 kg
12 lbs
Case Color Black, Gray
Hardware
Built-in Camera No
Connectivity 1 x DisplayPort
1 x DVI-D Dual Link
1 x 3.5 mm Audio In
1 x 3.5 mm Audio Out
1 x D-sub
2 x USB 2.0 (downstream)
1 x USB 2.0 (upstream)
Audio
Audio Speakers 2 x 1W
Features
Cool Features Light sensor
Paper mode
Flicker-free technology
HDCP (High-bandwidth Digital Content Protection)
Ergonomics
Case Width 19.69 in
50 cm
500 mm
1.64 ft
Case Height 12.85 in
32.7 cm
326.5 mm
1.07 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment Yes
Height Adjustment Range 140 mm
14 cm
5.5118 in
0.4593 ft
Landscape or Portrait Pivot Support Yes
Left Pivot 0 °
Right Pivot 90 °
Left or Right Swivel Support Yes
Left Swivel 172 °
Right Swivel 172 °
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 35 °
Frequency and Interpolation
Vertical Digital Frequency 59 Hz - 61 Hz
Horizontal Digital Frequency 31 kHz - 67.5 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.3 W
Power Consumption in Eco Mode 12 W
Maximum Power Consumption 39 W
Accessories
Extras DisplayPort cable
DVI-D cable
Certificates and Standards
Licenses CB
CCC
CE
cTÜVus
EAC
ENERGY STAR
Epeat Gold
FCC Class B
ICES-003-B
RCM
RoHS
TCO Certified Displays 6.0
TÜV/Ergonomics
TÜV/GS
VCCI-B
WEEE
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
