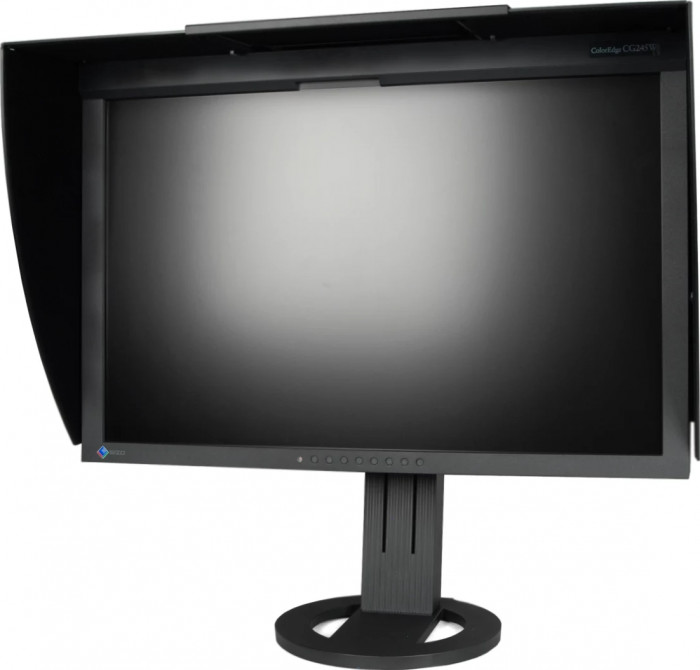

2010 24" EIZO CG245W Specifications

Brand EIZO
Type Monitor
Size 24" (inches)
Panel H-IPS
Refresh Rate 75 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:10
Screen Resolution 1920 x 1200
General Info
Type Monitor
Year 2010
Brand EIZO
Model Series ColorEdge
Model Number CG245W
Size 24" (inches)
Panel H-IPS
Display
Screen Size Class 24" (inches)
Diagonal Size 24.06 in
61.1 cm
611 mm
2 ft
Screen Width 20.41 in
51.8 cm
518.4 mm
1.7 ft
Screen Height 12.76 in
32.4 cm
324 mm
1.06 ft
Display Manufacturer LG Display
Display Type H-IPS
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Lut 3D LUT
12 bits
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:10
Screen Resolution 1920 x 1200
Screen Pixel Pitch 0.27 mm
Screen Pixel Density 94 ppi
Screen-to-Body Ratio 77.68 %
Backlight Source CCFL
sRGB 100 %
Adobe RGB 1998 98 %
Screen Brightness 270 cd/m²
Static Screen Contrast 850 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Screen Input Lag 16 ms
Display Minimum Response Time 5 ms
Display Average Response Time 13 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Depth 3.64 in
9.3 cm
92.5 mm
0.3 ft
Case Weight 7.1 kg
16 lbs
Case Width with Stand 22.28 in
56.6 cm
566 mm
1.86 ft
Case Height with Stand 15.61 in
39.7 cm
396.5 mm
1.3 ft
Case Depth with Stand 9.53 in
24.2 cm
242 mm
0.79 ft
Case Weight with Stand 10.1 kg
22 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x DisplayPort
2 x DVI-D Dual Link
2 x USB 2.0 (downstream)
1 x USB 2.0 (upstream)
Audio
Features
Cool Features ColorNavigator 6
DUE (Digital Uniformity Equalizer)
HDCP (High-bandwidth Digital Content Protection)
Brightness Stabilization
Built-in self calibration
Ergonomics
Case Width 22.28 in
56.6 cm
566 mm
1.86 ft
Case Height 15.04 in
38.2 cm
382 mm
1.25 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment Yes
Height Adjustment Range 157 mm
15.7 cm
6.1811 in
0.5151 ft
Landscape or Portrait Pivot Support Yes
Left Pivot 0 °
Right Pivot 90 °
Left or Right Swivel Support Yes
Left Swivel 172 °
Right Swivel 172 °
Forward and Backward Tilt Support Yes
Forward Tilt 2 °
Backward Tilt 30 °
Frequency and Interpolation
Vertical Digital Frequency 23.75 Hz - 63 Hz
Horizontal Digital Frequency 26 kHz - 78 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Electric Power in Amperes 1 A
Power Consumption When Device is Off 0.7 W
Power Consumption in Sleep Mode 1 W
Average Power Consumption 80 W
Power Consumption in Eco Mode 35 W
Maximum Power Consumption 100 W
Accessories
Extras DisplayPort cable
DVI-D cable
Hood
USB cable
Certificates and Standards
Licenses CB
CCC
CE
cTÜVus
EAC
ENERGY STAR
FCC Class B
ICES-003-B
RCM
RoHS
TCO Certified Displays 6.0
TÜV/Ergonomics
TÜV/GS
VCCI-B
WEEE
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 20 % - 80 %
Internal Storage Temperature -20 °C - 60 °C
-4 °F - 140 °F
Internal Storage Humidity 10 % - 80 %
