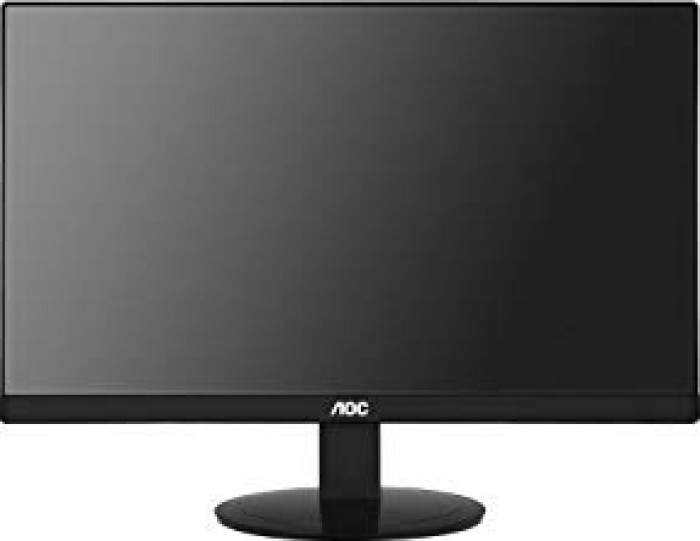

2016 22" AOC I2280SWD Specifications

Brand AOC
Type Monitor
Size 22" (inches)
Panel IPS
Refresh Rate 75 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type Monitor
Year 2016
Brand AOC
Model Number I2280SWD
Size 22" (inches)
Panel IPS
Display
Screen Size Class 22" (inches)
Diagonal Size 21.5 in
54.6 cm
546.1 mm
1.79 ft
Screen Width 18.74 in
47.6 cm
476.064 mm
1.56 ft
Screen Height 10.54 in
26.8 cm
267.786 mm
0.88 ft
Display Type IPS
Display Bit Depth 8 bits (6 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.248 mm
Screen Pixel Density 102 ppi
Backlight Source W-LED
Screen Brightness 250 cd/m²
Static Screen Contrast 1000 : 1
Dynamic Screen Contrast 20000000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Display Minimum Response Time 5 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Width with Stand 19.69 in
50 cm
500 mm
1.64 ft
Case Height with Stand 14.69 in
37.3 cm
373 mm
1.22 ft
Case Depth with Stand 7.87 in
20 cm
200 mm
0.66 ft
Case Weight with Stand 2.42 kg
5 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x DVI-D Dual Link
1 x D-sub
Audio
Features
Extra Features Security lock slot
Ergonomics
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 23 °
Frequency and Interpolation
Vertical Digital Frequency 50 Hz - 75 Hz
Horizontal Digital Frequency 30 kHz - 83 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 23 W
Accessories
Extras D-sub cable
DVI-D cable
Certificates and Standards
Licenses CE
EAC
ENERGY STAR 6.0
FCC Class B
RoHS
TÜV/Ergonomics
TÜV/GS
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 85 %
Internal Storage Temperature -25 °C - 55 °C
-13 °F - 131 °F
Internal Storage Humidity 5 % - 93 %
Max Operating Altitude 5000
Max Storage Altitude 12192
