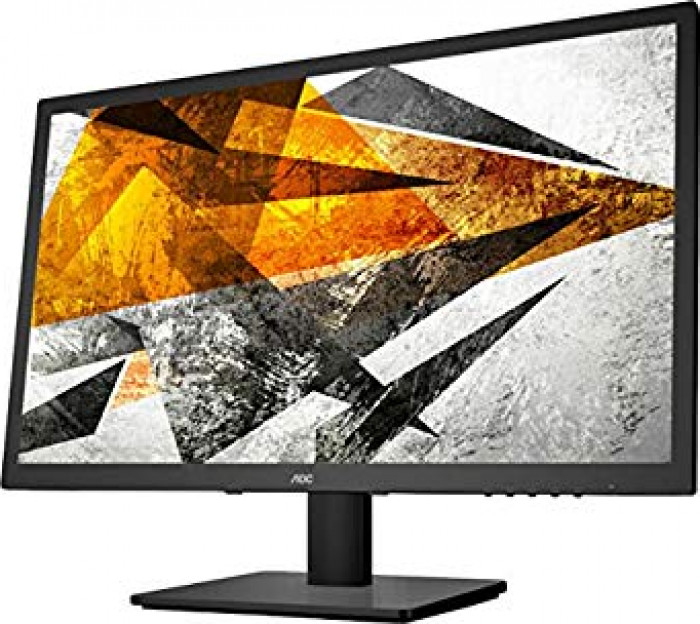

2017 24" AOC E2475SWQE Specifications

Brand AOC
Type Monitor
Size 24" (inches)
Panel TN
Refresh Rate 76 Hz
Min Response Time 1 ms
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type Monitor
Year 2017
Brand AOC
Model Number E2475SWQE
Size 24" (inches)
Panel TN
Display
Screen Size Class 24" (inches)
Diagonal Size 23.58 in
59.9 cm
599 mm
1.97 ft
Screen Width 20.52 in
52.1 cm
521.28 mm
1.71 ft
Screen Height 11.54 in
29.3 cm
293.22 mm
0.96 ft
Display Type TN
Display Bit Depth 8 bits (6 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.272 mm
Screen Pixel Density 93 ppi
Backlight Source W-LED
NTSC 1953 72 %
Screen Brightness 250 cd/m²
Static Screen Contrast 1000 : 1
Dynamic Screen Contrast 20000000 : 1
Screen Horizontal Viewing Angle 170 °
Screen Vertical Viewing Angle 160 °
Display Minimum Response Time 1 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Width with Stand 22 in
55.9 cm
558.8 mm
1.83 ft
Case Height with Stand 16.72 in
42.5 cm
424.6 mm
1.39 ft
Case Depth with Stand 7.81 in
19.9 cm
198.5 mm
0.65 ft
Case Weight with Stand 3.64 kg
8 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x D-sub
1 x 3.5 mm Audio Out
1 x HDMI 1.4
1 x DisplayPort 1.2
Audio
Features
Cool Features Flicker-free technology
HDCP (High-bandwidth Digital Content Protection)
Extra Features Security lock slot
Ergonomics
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 23.5 °
Frequency and Interpolation
Vertical Digital Frequency 50 Hz - 76 Hz
Horizontal Digital Frequency 30 kHz - 83 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 20 W
Maximum Power Consumption 30 W
Accessories
Extras D-sub cable
HDMI cable
Certificates and Standards
Licenses CE
EAC
ENERGY STAR
FCC Class B
RoHS
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 85 %
Internal Storage Temperature -25 °C - 55 °C
-13 °F - 131 °F
Internal Storage Humidity 5 % - 93 %
Max Operating Altitude 5000
Max Storage Altitude 12192
