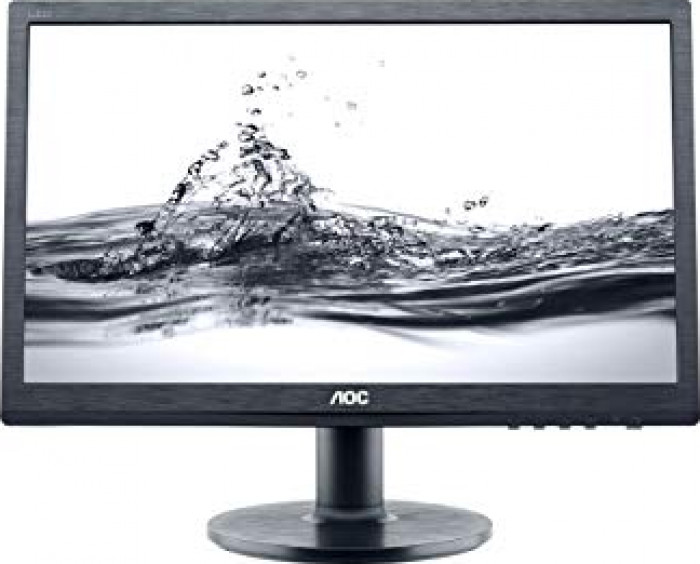

2013 20" AOC E2060SWDA Specifications

Brand AOC
Type Monitor
Size 20" (inches)
Panel TN
Refresh Rate 76 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:9
Screen Resolution 1600 x 900
General Info
Type Monitor
Year 2013
Brand AOC
Model Number E2060SWDA
Size 20" (inches)
Panel TN
Display
Screen Size Class 20" (inches)
Diagonal Size 19.45 in
49.4 cm
494 mm
1.62 ft
Screen Width 17.01 in
43.2 cm
432 mm
1.42 ft
Screen Height 9.44 in
24 cm
239.76 mm
0.79 ft
Display Manufacturer Innolux
Display Type TN
Display Bit Depth 8 bits (6 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1600 x 900
Screen Pixel Pitch 0.27 mm
Screen Pixel Density 94 ppi
Backlight Source W-LED
NTSC 1953 72 %
Screen Brightness 250 cd/m²
Static Screen Contrast 1000 : 1
Dynamic Screen Contrast 20000000 : 1
Screen Horizontal Viewing Angle 170 °
Screen Vertical Viewing Angle 160 °
Display Minimum Response Time 5 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Width with Stand 18.8 in
47.8 cm
477.6 mm
1.57 ft
Case Height with Stand 14.11 in
35.8 cm
358.3 mm
1.18 ft
Case Depth with Stand 7.07 in
18 cm
179.5 mm
0.59 ft
Case Weight with Stand 2.75 kg
6 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x 3.5 mm Audio Out
1 x DVI-D
1 x D-sub
Audio
Audio Speakers 2 x 2W
Features
Cool Features HDCP (High-bandwidth Digital Content Protection)
Extra Features Anti-theft stand lock slot - Kensington
Ergonomics
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 22 °
Frequency and Interpolation
Vertical Digital Frequency 50 Hz - 76 Hz
Horizontal Digital Frequency 30 kHz - 83 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.5 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 23 W
Accessories
Extras Audio cable
D-sub cable
Certificates and Standards
Licenses CE
EAC
ENERGY STAR
Epeat Silver
FCC Class B
RoHS
TCO Certified Displays
TÜV/GS
Usage and Storage Requirements
