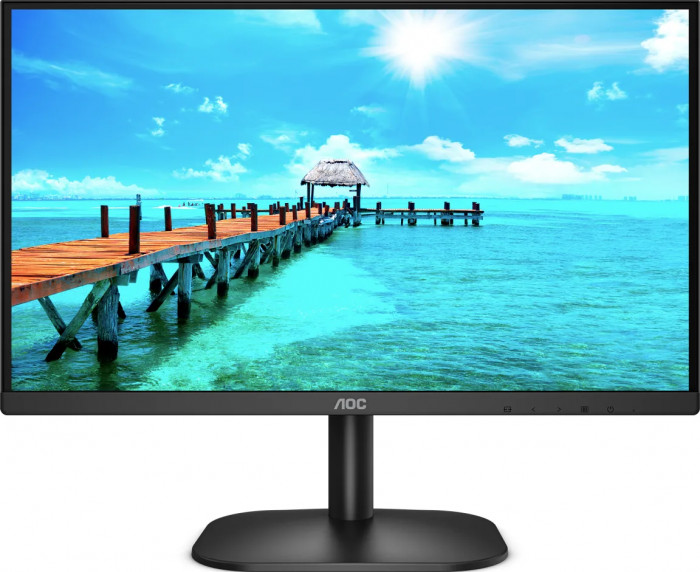

2020 22" AOC 22B2DA Specifications

Brand AOC
Type Monitor
Size 22" (inches)
Panel VA
Refresh Rate 75 Hz
Min Response Time 4 ms
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type Monitor
Year 2020
Brand AOC
Model Number 22B2DA
Size 22" (inches)
Panel VA
Display
Screen Size Class 22" (inches)
Diagonal Size 21.5 in
54.6 cm
546.1 mm
1.79 ft
Screen Width 18.77 in
47.7 cm
476.64 mm
1.56 ft
Screen Height 10.56 in
26.8 cm
268.11 mm
0.88 ft
Display Type VA
Display Bit Depth 8 bits (6 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.248 mm
Screen Pixel Density 102 ppi
Screen-to-Body Ratio 88.6 %
Backlight Source W-LED
sRGB 98 %
Adobe RGB 1998 77 %
Screen Brightness 200 cd/m²
Static Screen Contrast 3000 : 1
Dynamic Screen Contrast 200000000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Display Minimum Response Time 4 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Depth 1.43 in
3.6 cm
36.2 mm
0.12 ft
Case Width with Stand 19.4 in
49.3 cm
492.78 mm
1.62 ft
Case Height with Stand 15.28 in
38.8 cm
388.11 mm
1.27 ft
Case Depth with Stand 6.41 in
16.3 cm
162.94 mm
0.53 ft
Case Weight with Stand 2.1 kg
5 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x D-sub
1 x 3.5 mm Audio In
1 x 3.5 mm Audio Out
1 x HDMI 1.4
1 x DVI-D
Audio
Audio Speakers 2 x 2W
Features
Cool Features Clear Vision
DDC2B
Low Blue Light
Flicker-free technology
3-sided Frameless Design
Adaptive-Sync technology
Ergonomics
Case Width 19.4 in
49.3 cm
492.78 mm
1.62 ft
Case Height 11.52 in
29.3 cm
292.68 mm
0.96 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 21.5 °
Frequency and Interpolation
Vertical Digital Frequency 48 Hz - 75 Hz
Horizontal Digital Frequency 30 kHz - 85 kHz
Screen Interpolation Measurement Unit NULL
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.3 W
Average Power Consumption 16 W
Maximum Power Consumption 23 W
Energy Class B
Accessories
Extras HDMI cable
Certificates and Standards
Licenses CE
EAC
FCC
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 85 %
Internal Storage Temperature -25 °C - 55 °C
-13 °F - 131 °F
Internal Storage Humidity 5 % - 93 %
Max Operating Altitude 5000
Max Storage Altitude 12192
