| General Info | |
|---|---|
| Model Number | TCL 49S515 |
|
|
| Price | |
| Type | TV |
| Year | 2018 |
| Brand | TCL |
| Model Series | S5 |
| Model Number | 49S515 |
| Alias | 49S517 |
| Display | |
| Screen Size Class | 49" (inches) |
| Diagonal Size | 48.46 in 123.1 cm 1231 mm 4.04 ft |
| Screen Width | 42.24 in 107.3 cm 1072.91 mm 3.52 ft |
| Screen Height | 23.76 in 60.4 cm 603.512 mm 1.98 ft |
| Display Type | VA |
| Display Bit Depth | 10 bits (8 bits + FRC) |
| Frame Rate Control | Yes |
| Max Number of Colors | 1073741824 |
| Bits | 30 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| Screen Pixel Pitch | 0.279 mm |
| Screen Pixel Density | 91 ppi |
| Screen-to-Body Ratio | 93.15 % |
| Backlight Source | Edge LED |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| HDR | HDR10 Dolby Vision |
| 3D | No |
| Size, weight, color | |
| Case Depth | 2.9 in 7.4 cm 73.7 mm 0.24 ft |
| Case Weight | 11.7 kg 26 lbs |
| Case Width with Stand | 43.1 in 109.5 cm 1094.7 mm 3.59 ft |
| Case Height with Stand | 27.09 in 68.8 cm 688 mm 2.26 ft |
| Case Depth with Stand | 10 in 25.4 cm 254 mm 0.83 ft |
| Case Weight with Stand | 12 kg 26 lbs |
| Case Color | Black |
| Hardware | |
| CPU Cores | 2 |
| GPU Cores | 2 |
| TV Tuner | Analog (NTSC/PAL/SECAM) Clear QAM ATSC |
| Built-in Camera | No |
| Network | LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) |
| Connectivity | 3 x HDMI 2.0 (ARC; CEC) 1 x Satellite In (Main; F-type female) 1 x S/PDIF 1 x 3.5 mm Audio Out 1 x AV Composite In 3.5 mm jack 1 x USB 2.0 (max 0.5 A) 1 x Ethernet RJ45 |
| Audio | |
| Audio Speakers | 2 x 8W |
| Features | |
| OS | Roku TV |
| Cool Features | HDR Pro Gamma iPQ Engine Wide Color Gamut HDCP (High-bandwidth Digital Content Protection) 2.2 HDR Dynamic Contrast |
| Ergonomics | |
| Case Width | 43.1 in 109.5 cm 1094.7 mm 3.59 ft |
| Case Height | 25 in 63.5 cm 635 mm 2.08 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 200 x 200 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | No |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 60 Hz |
| Screen Interpolation Technology | Clear Motion Index |
| Screen Interpolation Value | 120 |
| Screen Interpolation Measurement Unit | CMI |
| Accessories | |
| Extras | Remote control - RC280 (49S515) Remote control - RC580 (49S517) |
| Certificates and Standards | |
| Licenses | RoHS |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % |
| Internal Storage Temperature | -15 °C - 45 °C 5 °F - 113 °F |
| Internal Storage Humidity | 10 % - 90 % |

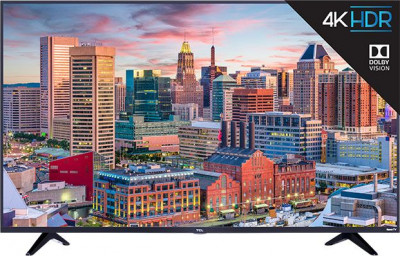

| TCL 49S515 |
