| General Info | ||
|---|---|---|

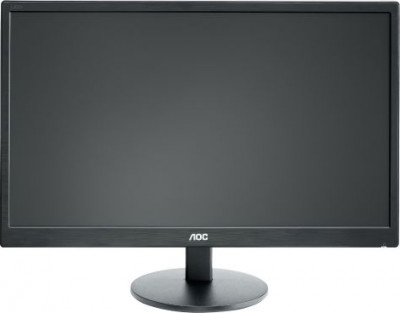

| Model Number | AOC M2470SWD2 | AOC 24G2 |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2016 | 2020 |
| Brand | AOC | AOC |
| Model Number | M2470SWD2 | 24G2 |
| Alias | 24G2/BK | |
| Display | ||
| Screen Size Class | 24" (inches) | 24" (inches) |
| Diagonal Size | 23.58 in 59.9 cm 599 mm 1.97 ft |
23.81 in 60.5 cm 604.7 mm 1.98 ft |
| Screen Width | 20.52 in 52.1 cm 521.28 mm 1.71 ft |
20.75 in 52.7 cm 527.04 mm 1.73 ft |
| Screen Height | 11.54 in 29.3 cm 293.22 mm 0.96 ft |
11.67 in 29.6 cm 296.46 mm 0.97 ft |
| Display Manufacturer | Innolux | Panda |
| Display Type | Super MVA | IPS |
| Display Bit Depth | 8 bits | 8 bits (6 bits + FRC) |
| Frame Rate Control | No | Yes |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 1920 x 1080 | 1920 x 1080 |
| Screen Pixel Pitch | 0.272 mm | 0.275 mm |
| Screen Pixel Density | 93 ppi | 92 ppi |
| Screen-to-Body Ratio | 81.92 % | |
| Backlight Source | W-LED | W-LED |
| sRGB | 126 % | |
| Adobe RGB 1998 | 94 % | |
| NTSC 1953 | 72 % | |
| Screen Brightness | 250 cd/m² | 250 cd/m² |
| Static Screen Contrast | 3000 : 1 | 1000 : 1 |
| Dynamic Screen Contrast | 30000000 : 1 | 20000000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Display Minimum Response Time | 5 ms | 1 ms |
| Display Average Response Time | 5 ms | |
| Display Coating | Anti-glare/Matte (3H) | Anti-glare/Matte (3H) |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 2.1 in 5.3 cm 53.4 mm 0.18 ft |
|
| Case Weight | 3.4 kg 7 lbs |
2.95 kg 6 lbs |
| Case Width with Stand | 21.71 in 55.1 cm 551.4 mm 1.81 ft |
21.22 in 53.9 cm 539.05 mm 1.77 ft |
| Case Height with Stand | 15.76 in 40 cm 400.4 mm 1.31 ft |
14.75 in 37.5 cm 374.61 mm 1.23 ft |
| Case Depth with Stand | 8.7 in 22.1 cm 221 mm 0.73 ft |
8.95 in 22.7 cm 227.36 mm 0.75 ft |
| Case Weight with Stand | 4.9 kg 11 lbs |
4.25 kg 9 lbs |
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | |
| Connectivity | 1 x DVI-D Dual Link 1 x D-sub |
1 x D-sub 1 x 3.5 mm Microphone In 1 x 3.5 mm Audio Out 2 x HDMI 1.4 1 x DisplayPort 1.2 |
| Audio | ||
| Audio Speakers | 2 x 2W | |
| Features | ||
| Cool Features | HDCP (High-bandwidth Digital Content Protection) | Low Blue Light AMD FreeSync technology Flicker-free technology |
| Extra Features | Security lock slot | |
| Ergonomics | ||
| Case Width | 21.71 in 55.1 cm 551.4 mm 1.81 ft |
|
| Case Height | 13.32 in 33.8 cm 338.4 mm 1.11 ft |
|
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | Yes |
| Height Adjustment Range | 130 mm 13 cm 5.1181 in 0.4265 ft |
|
| Landscape or Portrait Pivot Support | No | Yes |
| Left Pivot | 0 ° | |
| Right Pivot | 90 ° | |
| Left or Right Swivel Support | No | Yes |
| Right Swivel | 30 ° | |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 4 ° |
| Backward Tilt | 25 ° | 21.5 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 50 Hz - 76 Hz | 48 Hz - 146 Hz |
| Horizontal Digital Frequency | 30 kHz - 83 kHz | 30 kHz - 160 kHz |
| Accessories | ||
| Extras | D-sub cable DVI-D cable |
DisplayPort cable HDMI cable |
| Certificates and Standards | ||
| Licenses | CE EAC ENERGY STAR 6.0 FCC Class B RoHS TCO 6 TÜV/Ergonomics TÜV/GS |
|
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
|
| Safe Operating Humidity Level | 10 % - 85 % | |
| Internal Storage Temperature | -25 °C - 55 °C -13 °F - 131 °F |
|
| Internal Storage Humidity | 5 % - 93 % | |
| Max Operating Altitude | 5000 | |
| Max Storage Altitude | 12192 |
| AOC M2470SWD2 | AOC 24G2 |
